Components [03/2019 - ]

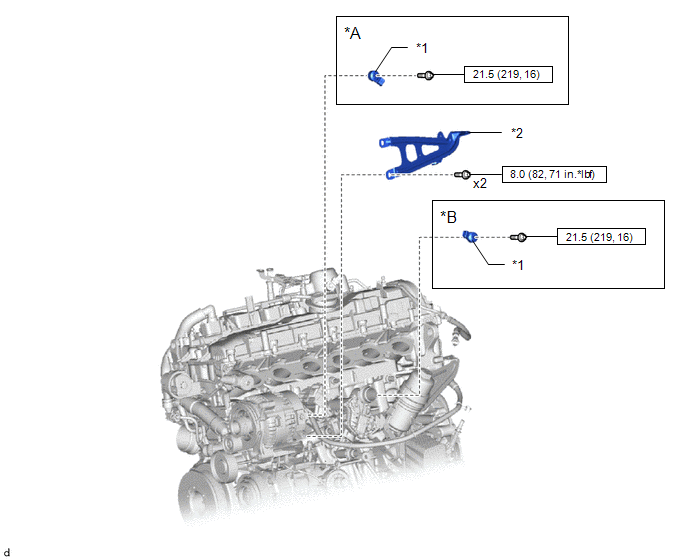

Fig 1: Knock Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY869619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bank 1 *B for Bank 2
*1 KNOCK SENSOR *2 INTAKE MANIFOLD STAY
N*m (kgf*cm, ft.*lbf): Specified torque - -
