Components [03/2019 - ]

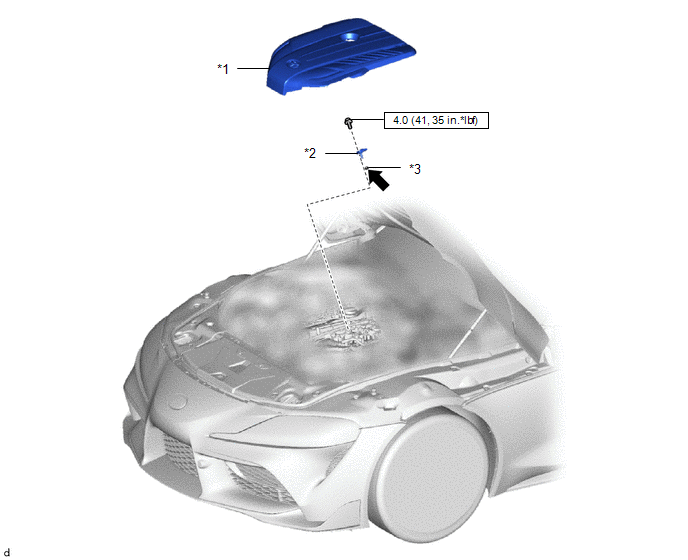

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY937537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 VACUUM SENSOR ASSEMBLY
*3 O-RING - -
N*m (kgf*cm, ft.*lbf): Specified torque LUBRICANT
