Components [03/2019 - ]

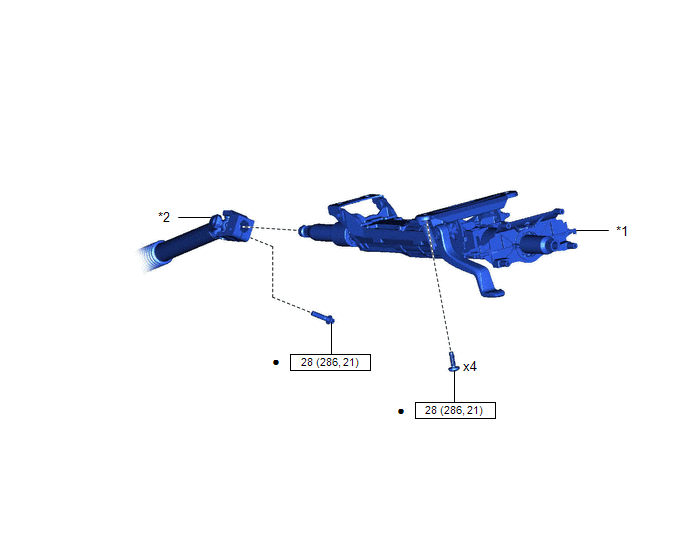

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications
GTY859581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 STEERING COLUMN ASSEMBLY *2 STEERING INTERMEDIATE SHAFT ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
