Components [03/2019 - ]

Fig 1: Accumulator Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

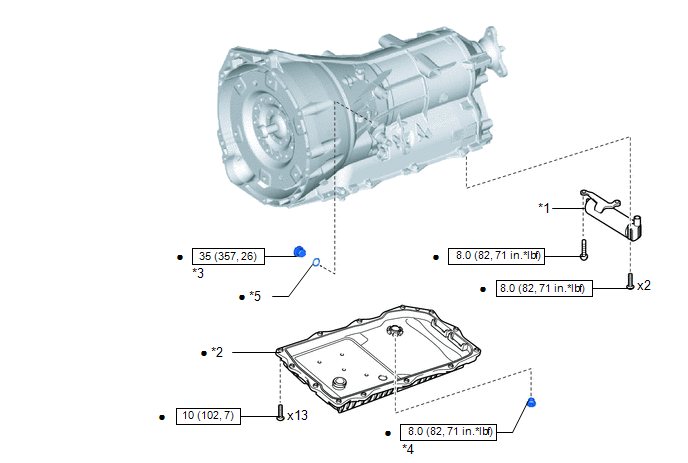

Fig 2: Accumulator Assembly Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	HYDRAULIC IMPULSE STORAGE	*2	TRANSMISSION OIL SUMP
*3	FILLER PLUG	*4	OIL DRAIN PLUG
*5	SEALING RING	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
