Components [03/2019 - 07/2020]
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | UPPER FRONT FENDER PROTECTOR LH |
| *3 | UPPER FRONT FENDER PROTECTOR RH | - | - |

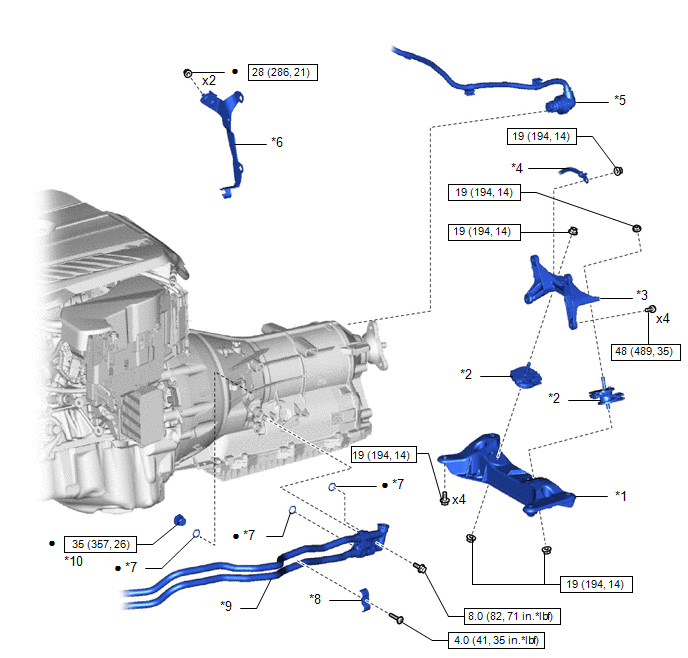

Fig 2: Automatic Transmission Assembly Replacement Components With Torque Specifications [03/2019 - 07/2020] (2 Of 4)
| Callout | Description | Callout | Description |
| *1 | REAR ENGINE MOUNTING MEMBER | *2 | REAR ENGINE MOUNTING INSULATOR |
| *3 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *4 | NO. 2 EARTH WIRE |
| *5 | WIRE HARNESS | *6 | NO. 2 MANIFOLD STAY |
| *7 | SEALING RING | *8 | NO. 3 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP |
| *9 | OIL COOLER TUBE | *10 | FILLER PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 3: Automatic Transmission Assembly Replacement Components With Torque Specifications [03/2019 - 07/2020] (3 Of 4)
| Callout | Description | Callout | Description |
| *1 | PROPELLER SHAFT ASSEMBLY | *2 | NO. 1 FLOOR HEAT INSULATOR |
| *3 | NO. 2 FLOOR HEAT INSULATOR | *4 | FRONT FLOOR COVER RH |
| *5 | FRONT FLOOR COVER LH | *6 | FRONT NO. 1 FLOOR HEAT INSULATOR |
| *7 | FRONT FLOOR COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | Lubricant Olistamoly 2 LN 584 LO | ||
| *T1 | 1st: 55 (561, 41) 2nd: Turn 90° |
• | Non-reusable part |

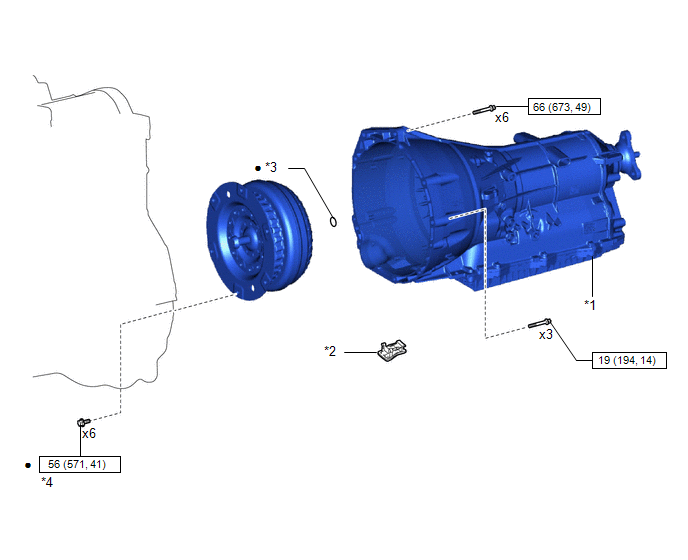

Fig 4: Automatic Transmission Assembly Replacement Components With Torque Specifications [03/2019 - 07/2020] (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | AUTOMATIC TRANSMISSION ASSEMBLY | *2 | TRANSMISSION HOUSING COVER |
| *3 | O-RING | *4 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
