Installation [07/2020 - ]: Procedure

INSTALL TORQUE CONVERTER

WARNING:

Damage to the driver of the impeller.
Failure to observe the installation instructions may lead to damage on the impeller driver.
- During installation, do not damage the torque converter radial shaft seal or ball bearing.
- Lock the torque converter correctly. Otherwise, the driver of the impeller may be damaged when the automatic transmission assembly is flange-mounted on the engine.

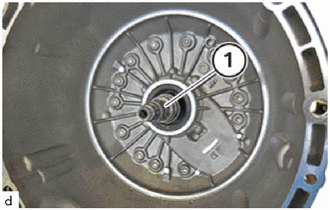

Replace the O-ring on the drive shaft (1).

HINT:

When replacing the torque converter, use this procedure.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Push the torque converter onto the transmission shaft up to the limit position.
HINT:
- Press torque converter by hand into converter housing.
- At the same time, turn the torque converter until the recesses at the hub of the torque converter engage in the driver of the impeller.
- You can feel the torque converter slipping inward.

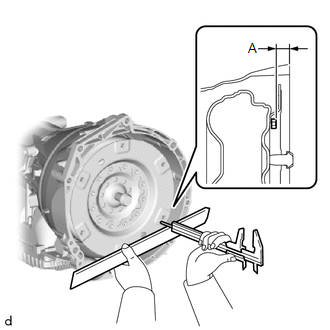

Determine the dimension between the contact surface and the outer edge of the torque converter threaded hole using a vernier caliper and straightedge.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

Dimension (A) = Measured value is greater than 15 mm.

TEMPORARILY TIGHTEN AUTOMATIC TRANSMISSION ASSEMBLY

NOTE:

Damage to the automatic transmission assembly.
Damage to the automatic transmission assembly through unapproved automatic transmission fluid.
- Use only the approved Automatic Gearbox Oil ATF 3+.
- After completion of repair work, check automatic transmission fluid level.

Replace damaged fitting sleeves (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check for correct fit of fitting sleeves (1).

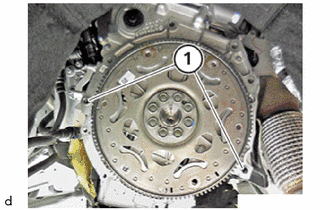

Rotate the torque converter until the bore hole of the torque converter is flush with bore hole in drive plate.
Install the automatic transmission assembly.
Fit the E10 bolts and E14 bolts and apply hand-tighten.

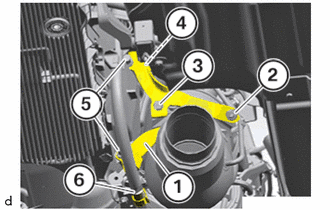

INSTALL NO. 2 MANIFOLD STAY (for B46)

Position the No. 2 manifold stay (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hand-tighten the bolts (5).
Replace the bolt (3) and nut (2).
Tighten the bolt (3) and nut (2).
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Mount the cable (4) of the front oxygen sensor on the No. 2 manifold stay (1).
Mount the cable (6) on the No. 2 manifold stay (1).

INSTALL NO. 2 MANIFOLD STAY (for B48)

Position the No. 2 manifold stay (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hand-tighten the bolts (5).
Replace the bolt (3) and nut (2).
Tighten the bolt (3) and nut (2).
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Mount the cable (4) of the front oxygen sensor on the No. 2 manifold stay (1).
Mount the cable (6) on the No. 2 manifold stay (1).

INSTALL NO. 2 MANIFOLD STAY (for B58)
1. Insert and position the No. 2 manifold stay.
2. Hand-tighten the bolts.
  NOTE:
  - Improper routing of the positive battery cable.
  - Risk of short circuits!

    Route the positive battery cable without abrasions and do not trap.
3. Engage the starter cable in the clamps.
4. Engage the tab downward.
5. Replace nuts.
6. Tighten nuts.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
FULLY TIGHTEN AUTOMATIC TRANSMISSION ASSEMBLY
1. For B46, B48:
  1. Tighten the E10 bolts and E14 bolts in sequence (1) to (8).
    E10 bolt

    Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    E14 bolt

    Torque: 66 N*m (673 kgf*cm, 49 ft.*lbf)
2. For B58:

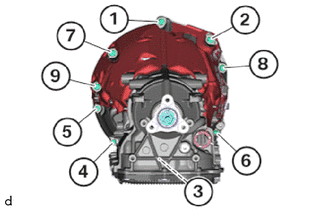

  Fig 1: Automatic Transmission Assembly Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Tighten the E10 bolts and E14 bolts in sequence (1) to (9).
    E10 bolt

    Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

    E14 bolt

    Torque: 66 N*m (673 kgf*cm, 49 ft.*lbf)

REMOVE SPECIAL TOOL TO FIX THE TORQUE CONVERTER

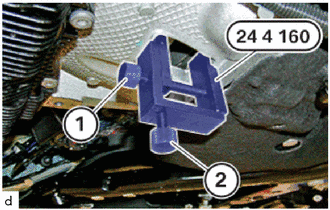

Release screw (1) and screw (2).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove special tool 0 494 451 (24 4 160).
- SST: 09300-WA030
Install the transmission housing cover.

INSTALL TRANSMISSION HOUSING UNDER COVER
1. For B46, B48:
  1. Install the transmission housing under cover.
  2. Install the expanding rivet.
  3. Install holder.
  4. Tighten down the E10 bolt.
    Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

INSTALL DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT

Replace the drive plate and torque converter assembly setting bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

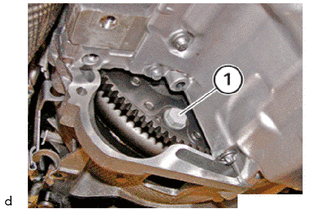

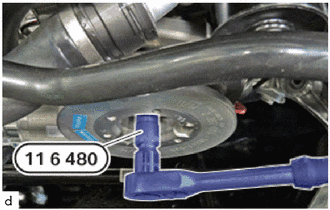

Turn the engine on the crankshaft pulley assembly with the special tool 0 493 380 (11 6 480) in the direction of rotation until a drive plate and torque converter assembly setting bolt (1) becomes visible in the recess.

SST: 09200-WA190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the drive plate and torque converter assembly setting bolts of the torque converter.
Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf)

HINT:

Repeat this procedure for all drive plate and torque converter assembly setting bolts.

INSTALL CYLINDER BLOCK COVER (for B46)
Refer to PROCEDURE - Step 3
INSTALL CYLINDER BLOCK COVER (for B48)
Refer to PROCEDURE - Step 3

INSTALL WIRE HARNESS

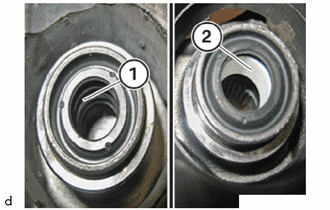

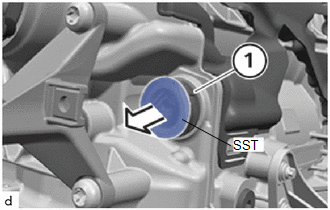

Remove the special tool 0 494 213 (24 2 390) from the sealing sleeve (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09300-WA100

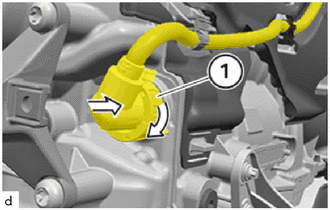

Slide the connector (1) on.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Twist the connector (1) in the direction of the arrow and lock.

CONNECT NO. 2 EARTH WIRE
1. Install the No. 2 earth wire.
2. Tighten nut.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

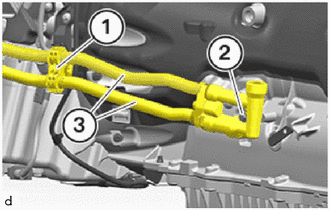

CONNECT OIL COOLER TUBE

Replace sealing rings.

Position the oil cooler tubes on the automatic transmission assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten down the bolt (2).
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
Tighten down the T25 screw (1).
Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

INSTALL PROPELLER SHAFT ASSEMBLY

Check center No. 1 support bearing assembly for damage, replace if necessary.

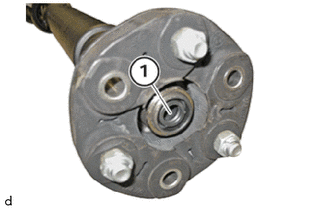

Apply a thin coat of Lubricant Olistamoly 2 LN 584 LO to the soft centering (1), if necessary.

Do not grease the hard centering (2).

Replace the 18 mm bolts and 18 mm self-locking nuts.

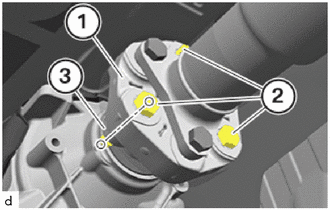

Assemble the 18 mm bolts connections (2) of the flexible coupling (1) and the output flange (3) according to the self-affixed identification.

NOTE:

This should prevent a humming noise from the drive train during driving.

Hand-tighten 18 mm bolts (1) and 18 mm nuts (2), but do not tighten fully.
Position the center bearing.
HINT:

Hand-tighten the bolts, but do not tighten fully.
Hand-tighten the bolts, but do not tighten fully.
Hold down the 18 mm bolts of the flexible coupling on the 18 mm nuts and tighten over the 18 mm bolts.
Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

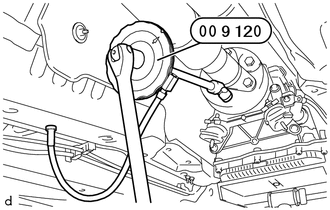

Using SST, tighten the 18 mm bolts and counter support them at the 18 mm nuts an additional 90°.

SST: 09900-WA010

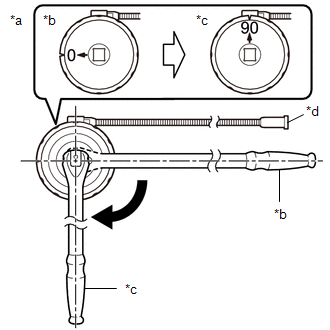

HINT:

*a	Example
*b	Before Tightening
*c	After Tightening
*d	Magnetic Portion

The magnetic portion is used to secure the gauge to the vehicle.
After first adjusting the needle of the gauge to 0°, tighten to the specified angle.
Perform the work procedure carefully so that the gauge, etc. does not become tilted.

Tighten the bolts.
Torque: 21.4 N*m (218 kgf*cm, 16 ft.*lbf)

PARKING LOCK
See step 3

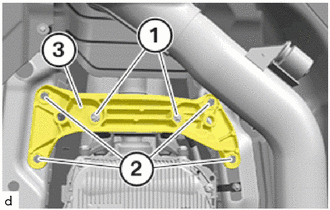

INSTALL REAR ENGINE MOUNTING MEMBER

Install the rear engine mounting member (3).

Tighten the nuts (1).
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Tighten down the bolts (2).
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

INSTALL FLOOR HEAT INSULATOR
1. Install the No. 1 floor heat Insulator and No. 2 floor heat Insulator.
2. Install the nuts and tighten.
  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 4 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 4 [07/2022 - ]
INSTALL EXHAUST PIPE ASSEMBLY (for B46)
Refer to INSTALLATION [07/2020 - ]
INSTALL EXHAUST PIPE ASSEMBLY (for B48)
INSTALL EXHAUST PIPE ASSEMBLY (for B58)
Refer to INSTALLATION [03/2019 - ]
INSTALL FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 6 [03/2019 - 07/2022] , or refer to PROCEDURE - Step 8 [07/2022 - ]
INSTALL FRONT FLOOR COVER RH
HINT:

Use the same procedure as for the LH side.
INSTALL STARTER ASSEMBLY (for B46)
Refer to INSTALLATION [07/2020 - ]
INSTALL STARTER ASSEMBLY (for B48)
Refer to INSTALLATION [07/2020 - ]
INSTALL STARTER ASSEMBLY (for B58)
Refer to INSTALLATION [03/2019 - ]
REMOVE ENGINE SUPPORT BRIDGE (for B58)
Refer to PROCEDURE - Step 20
REMOVE ENGINE HANGER (for B58)
Refer to PROCEDURE - Step 21
INSTALL FRONT FENDER UPPER PROTECTOR LH (for B58)
Refer to PROCEDURE - Step 2
INSTALL FRONT FENDER UPPER PROTECTOR RH (for B58)
HINT:

Use the same procedure as for the LH side.
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (for B58)
Refer to PROCEDURE - Step 38
REMOVE AND INSTALL HOOD SUPPORT ASSEMBLY (for B58)
Refer to PROCEDURE - Step 44
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for B46)
Refer to INSTALLATION [07/2020 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for B48)
Refer to INSTALLATION [07/2020 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for B58)
Refer to INSTALLATION [03/2019 - ]
ADJUST AUTOMATIC TRANSMISSION FLUID LEVEL
Refer to ADJUSTMENT [03/2019 - ]
INSPECT FOR AUTOMATIC TRANSMISSION FLUID LEAK
INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 7
INSTALL FRONT SUSPENSION MEMBER LOWER PROTECTOR
Refer to INSTALLATION [03/2019 - ]
INSTALL REAR ENGINE MOUNTING INSULATOR
HINT:

Perform this procedure only when replacement of the rear engine mounting insulator is necessary.
1. Install the rear engine mounting insulator.
2. Tighten nuts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
INSTALL REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY
HINT:

Perform this procedure only when replacement of the rear engine mounting bracket sub-assembly is necessary.
1. Install the rear engine mounting bracket sub-assembly.
2. Tighten down the T55 bolts.
  Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)
ENCODE/PROGRAM CONTROL UNIT(S)
NOTE:
- Use the most recent software version to prevent faults during programming/encoding.
- The battery voltage must not drop below 13.0 V during programming.
- Use only recommended chargers for a low-voltage vehicle electrical system.
- Do not exceed the maximum charging voltage of 14.8 V when charging the battery.
- When there is communication abnormality in the middle of work, control unit might be damaged.
- It may be necessary to perform the Action Plan several times.
1. Connect the battery charger to the vehicle.
2. Connect the diagnosis system with the vehicle.
3. Determine the action plan.
  Service plan / Programming plan / Action plan / Calculate action plan
4. Accept and fully process the measures plan.
  Service plan / Programming plan / Action plan / Perform action plan
5. Wait until programming/encoding has been completed.
  NOTE:
  When there is communication abnormality in the middle of work, control unit might be damaged.
6. Carry out vehicle test.
  Vehicle management / Troubleshooting / Fault memory / Calculate test plan
7. Delete the fault memory.
  Vehicle management / Troubleshooting / Fault memory / Delete fault memory
8. Disconnect the diagnosis system from the vehicle.
9. Disconnect the battery charger from the vehicle.
