Installation [08/2015 - ]: Procedure

  1. INSTALL VSC OFF SWITCH

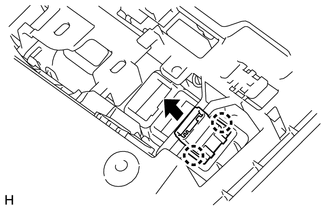

    1. Attach the 2 claws to install the VSC OFF switch to the map light assembly.
      GTY212908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL MAP LIGHT ASSEMBLY

    See step  2

  3. INSTALL DRIVE MONITOR SWITCH

    See step  1
