Toyota
›
2021
›
4Runner TRD Pro
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - Service Information
›
Camshaft Oil Control Valve
›
Components [08/2015 - ]
Components [08/2015 - ]

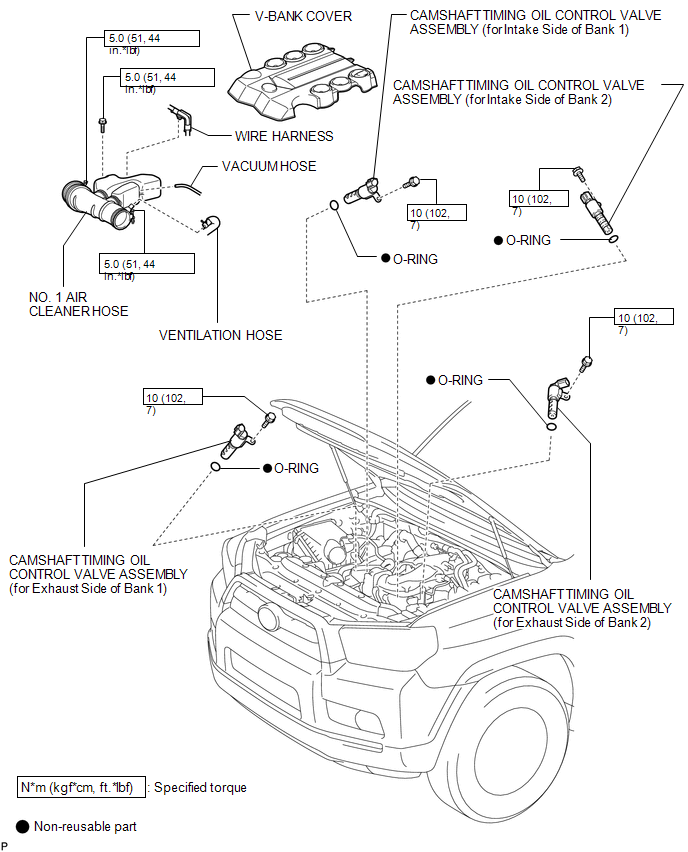

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
