Removal [08/2015 - ]: Procedure

  1. DRAIN POWER STEERING FLUID
  2. REMOVE POWER STEERING OIL PRESSURE SWITCH

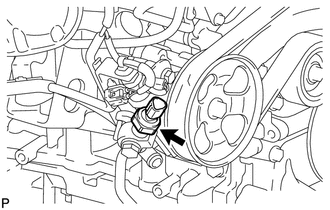

    1. Disconnect the oil pressure switch connector.
      GTY222074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 24 mm deep socket wrench, remove the oil pressure switch.
