Adjustment [08/2015 - 12/2016]: Procedure
- INSPECT TIRES
- Inspect the tires (Refer to INSPECTION [08/2015 - ] ).
- MEASURE VEHICLE HEIGHT NOTE:
Before inspecting the wheel alignment, adjust the vehicle height to the specification.

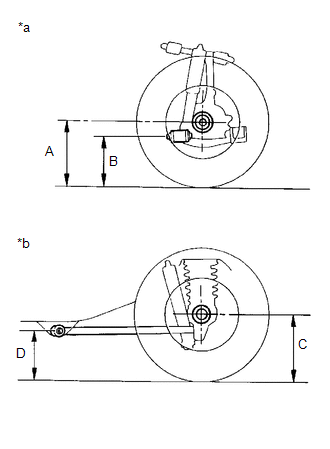

- Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.TEXT IN ILLUSTRATION
*a Front Side *b Rear Side Measuring points
A
Ground clearance of the center of the front wheel
B
Ground clearance of the center of the front adjusting cam bolt
C
Ground clearance of the center of the rear wheel
D
Ground clearance of the center of the rear lower control arm front side
If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.
Standard Vehicle Height (Unloaded Vehicle)
Vehicle Model Grade Front (A - B) Rear (C - D) GRN280L-GKAGKA SR5, SR5 Premium 116.7 mm (4.59 in.) 80.7 mm (3.18 in.) LIMITED 117.2 mm (4.61 in.) 85.4 mm (3.36 in.) GRN285L-GKAGKA SR5, SR5 Premium 94.9 mm (3.74 in.) 68.8 mm (2.71 in.) Trail, Trail Premium
(w/o KDSS)95.6 mm (3.76 in.) 69.8 mm (2.75 in.) Trail, Trail Premium
(w/ KDSS)98.2 mm (3.87 in.) 72.1 mm (2.84 in.) LIMITED 97.6 mm (3.84 in.) 72.5 mm (2.85 in.) NOTE:The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.
- Press down on the vehicle several times to stabilize the suspension, and then measure the vehicle height.
- INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
- Install a camber-caster-kingpin gauge or place the front wheels on the center of a wheel alignment tester.TEXT IN ILLUSTRATION
*1 Wheel Alignment Tester *2 Gauge - Inspect the camber, caster and steering axis inclination.
Standard Camber Inclination (Unloaded Vehicle)
Vehicle Model Grade Camber Inclination Right-left Difference GRN280L-GKAGKA SR5, SR5 Premium -0°37' +/-30' (-0.62° +/-0.5°) 30' (0.5°) or less LIMITED -0°38' +/-30' (-0.63° +/-0.5°) 30' (0.5°) or less GRN285L-GKAGKA SR5, SR5 Premium -0°1' +/-30' (-0.02° +/-0.5°) 30' (0.5°) or less Trail, Trail Premium
(w/o KDSS)-0°3' +/-30' (-0.05° +/-0.5°) 30' (0.5°) or less Trail, Trail Premium
(w/ KDSS)-0°7' +/-30' (-0.12° +/-0.5°) 30' (0.5°) or less LIMITED -0°6' +/-30' (-0.10° +/-0.5°) 30' (0.5°) or less Standard Caster Inclination (Unloaded Vehicle)
Vehicle Model Grade Caster Inclination Right-left Difference GRN280L-GKAGKA SR5, SR5 Premium 3°40' +/-30' (3.67° +/-0.5°) 30' (0.5°) or less LIMITED 3°50' +/-30' (3.83° +/-0.5°) 30' (0.5°) or less GRN285L-GKAGKA SR5, SR5 Premium 3°15' +/-30' (3.25° +/-0.5°) 30' (0.5°) or less Trail, Trail Premium
(w/o KDSS)3°16' +/-30' (3.27° +/-0.5°) 30' (0.5°) or less Trail, Trail Premium
(w/ KDSS)3°21' +/-30' (3.35° +/-0.5°) 30' (0.5°) or less LIMITED 3°22' +/-30' (3.37° +/-0.5°) 30' (0.5°) or less Standard Steering Axis Inclination (Unloaded Vehicle)
Vehicle Model Grade Steering Axis Inclination GRN280L-GKAGKA SR5, SR5 Premium 12°42' +/-30' (12.70° +/-0.5°) LIMITED 12°44' +/-30' (12.73° +/-0.5°) GRN285L-GKAGKA SR5, SR5 Premium 12°11' +/-30' (12.18° +/-0.5°) Trail, Trail Premium
(w/o KDSS)12°12' +/-30' (12.20° +/-0.5°) Trail, Trail Premium
(w/ KDSS)12°16' +/-30' (12.27° +/-0.5°) LIMITED 12°15' +/-30' (12.25° +/-0.5°)
- Install a camber-caster-kingpin gauge or place the front wheels on the center of a wheel alignment tester.
- ADJUST CAMBER AND CASTER
HINT:
After the camber has been adjusted, inspect the toe-in.
- Loosen the front adjusting cam bolt and rear adjusting cam nut.
- Turn the front adjusting cam and rear adjusting cam in both directions, and adjust the camber and caster to the center value.
HINT:
- The camber and caster should be as close as possible to the center value.
- Adjust the camber and caster within +/-30'.

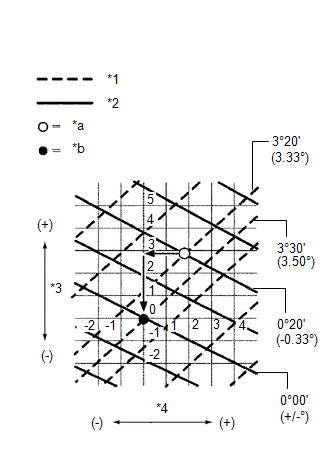

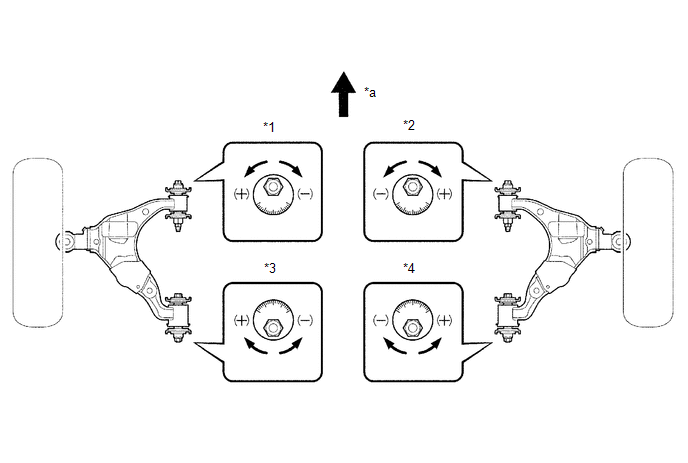

TEXT IN ILLUSTRATION*1 Front Adjusting Cam LH *2 Front Adjusting Cam RH *3 Rear Adjusting Cam LH *4 Rear Adjusting Cam RH Front - - - Read the adjustment chart (example).TEXT IN ILLUSTRATION
*1 Caster *2 Camber *3 Front Adjusting Cam *4 Rear Adjusting Cam *a Measured Value *b Standard Value - Find the wheel alignment standard value applicable for the particular model.
- Mark the selected standard value on the adjustment chart.STANDARD VALUE (REFERENCE)
Camber Caster 0°00' (0.00°) 3°30' (3.50°) - Mark the alignment value measured when the vehicle is unloaded on the adjustment chart.MEASURED VALUE (REFERENCE)
Camber Caster -0°20' (-0.33°) 3°20' (3.33°) - As shown in the chart, read the distance from the marked point to 0, and adjust the front and/ or rear adjusting cams accordingly.AMOUNT TO TURN ADJUSTING CAMS (BY GRADATION)

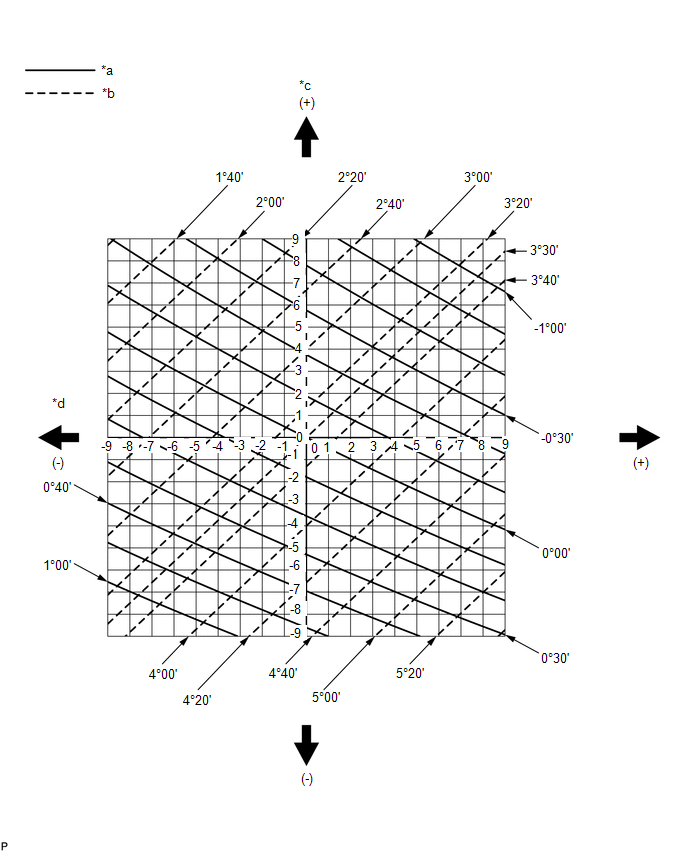

Front Adjusting Cam Rear Adjusting Cam +3 +2 TEXT IN ILLUSTRATION*a Camber *b Caster *c Front Cam Graduation *d Rear Cam Graduation
- INSPECT TOE-IN
- Bounce the vehicle up and down at the corners to stabilize the suspension and inspect the toe-in.TEXT IN ILLUSTRATION
Front Standard Toe-in (Unloaded Vehicle)
Vehicle Model Grade Toe-in GRN280L-GKAGKA SR5, SR5 Premium A + B: 0°10' +/-0°9' (0.16° +/-0.15°)
C - D: 2.35 +/-2 mm (0.09 +/-0.08 in.)LIMITED A + B: 0°10' +/-0°9' (0.16° +/-0.15°)
C - D: 2.16 +/-2 mm (0.09 +/-0.08 in.)GRN285L-GKAGKA SR5, SR5 Premium A + B: 0°10' +/-0°9' (0.16° +/-0.15°)
C - D: 2.29 +/-2 mm (0.09 +/-0.08 in.)Trail, Trail Premium
(w/o KDSS)A + B: 0°10' +/-0°9' (0.16° +/-0.15°)
C - D: 2.11 +/-2 mm (0.08 +/-0.08 in.)Trail, Trail Premium
(w/ KDSS)A + B: 0°6' +/-0°9' (0.10° +/-0.15°)
C - D: 1.49 +/-2 mm (0.06 +/-0.08 in.)LIMITED A + B: 0°8' +/-0°9' (0.14° +/-0.15°)
C - D: 1.60 +/-2 mm (0.06 +/-0.08 in.)If the toe-in is not within the specified range, adjust it at the rack ends.
- Bounce the vehicle up and down at the corners to stabilize the suspension and inspect the toe-in.
- ADJUST TOE-IN
- Detach the rack boot set clips.
- Loosen the tie rod end lock nuts.
- Turn the right and left rack ends by an equal amount to adjust the toe-in to the center value.
- Check that the lengths of the right and left rack ends are approximately the same.
Standard difference
0 +/-1 mm (0 +/-0.0394 in.) or less

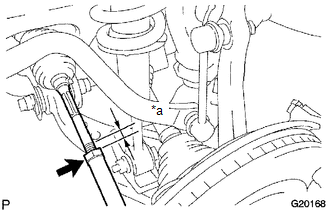

TEXT IN ILLUSTRATION*a Length Lock Nut - Tighten the tie rod end lock nuts.
Torque: 88 N.m (897 kgf/cm, 65 ft.lbf)
- Place the boots on the seats and install the clips.
HINT:
Make sure that the boots are not twisted.
- INSPECT WHEEL ANGLE
- Turn the steering wheel to the left and right full lock positions, and measure the turning angle.TEXT IN ILLUSTRATION
*a Inside *b Outside Front Standard Wheel Turning Angle (Unloaded Vehicle)
Vehicle Model Grade Inside Wheel Angle Outside Wheel Angle: Reference GRN280L-GKAGKA SR5, SR5 Premium 29°48' to 32°48'
(29.80° to 32.80°)29°33'
(29.55°)LIMITED 29°47' to 32°47'
(29.78° to 32.78°)29°31'
(29.52°)GRN285L-GKAGKA SR5, SR5 Premium 30°20' to 33°20'
(30.33° to 33.33°)29°28'
(29.47°)Trail, Trail Premium
(w/o KDSS)30°20' to 33°20'
(30.33° to 33.33°)29°27'
(29.45°)Trail, Trail Premium
(w/ KDSS)30°17' to 33°17'
(30.28° to 33.28°)29°23'
(29.38°)LIMITED 30°18' to 33°18'
(30.30° to 33.30°)29°24'
(29.40°)If the right and left inside wheel angles differ from the specified range, check the right and left rack end lengths.
- Turn the steering wheel to the left and right full lock positions, and measure the turning angle.
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
HINT:
Perform the yaw rate sensor zero point calibration (Refer to CALIBRATION [08/2015 - 08/2019] ).
- PERFORM INITIALIZATION
HINT:
Some systems need to be initialized after the wheel alignment is adjusted (Refer to INITIALIZATION [08/2015 - 08/2019] ).
