Components [04/2018 -]

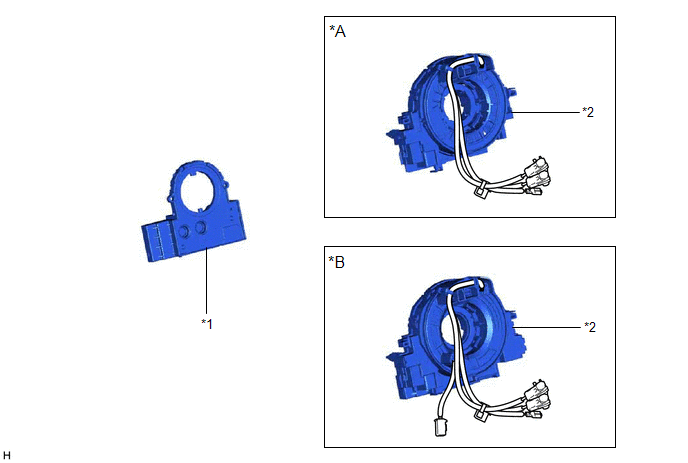

Fig 1: Steering Angle Sensor Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Heated Steering Wheel System	*B	w/ Heated Steering Wheel System
*1	STEERING SENSOR	*2	SPIRAL CABLE SUB-ASSEMBLY
