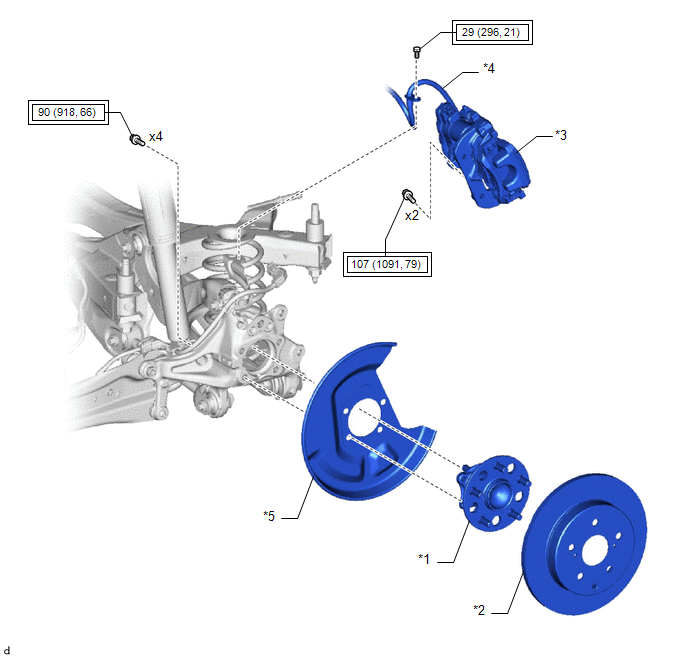

Components [02/2017 - ]
| Callout | Description | Callout | Description |
| *1 | REAR AXLE HUB AND BEARING ASSEMBLY | *2 | REAR DISC |
| *3 | REAR DISC BRAKE CALIPER ASSEMBLY | *4 | REAR FLEXIBLE HOSE |
| *5 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
