Components [02/2017 - ]

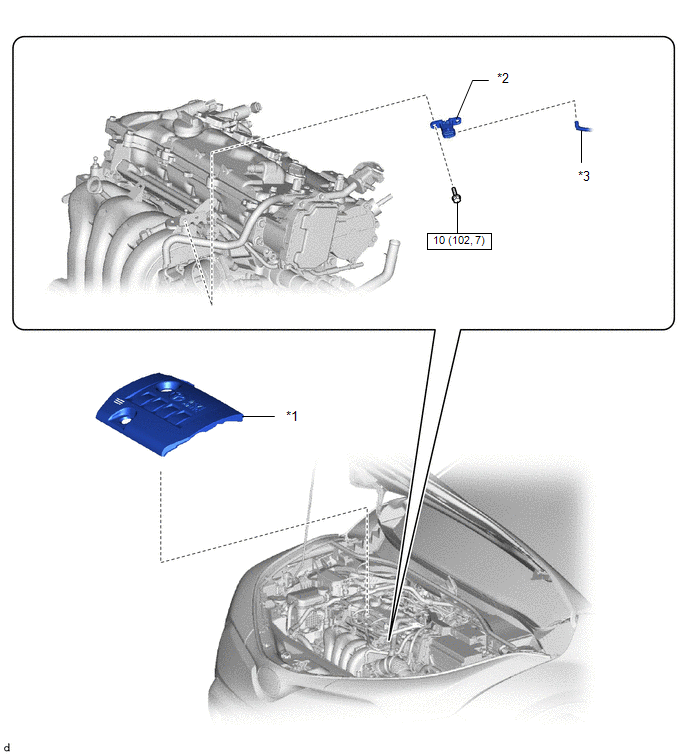

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY753034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 CYLINDER HEAD COVER *2 VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
*3 VACUUM HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
