VALVEMATIC Shaft Sensor
›
Components [02/2017 - ]
Components [02/2017 - ]

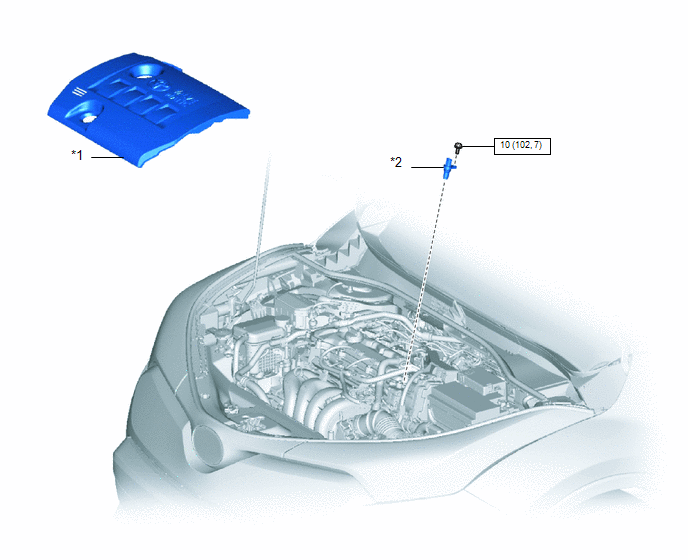

Fig 1: Valvematic Shaft Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 2 CYLINDER HEAD COVER
*2
VALVEMATIC SHAFT SENSOR (CAMSHAFT POSITION SENSOR)
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
