Components [02/2017 - ]

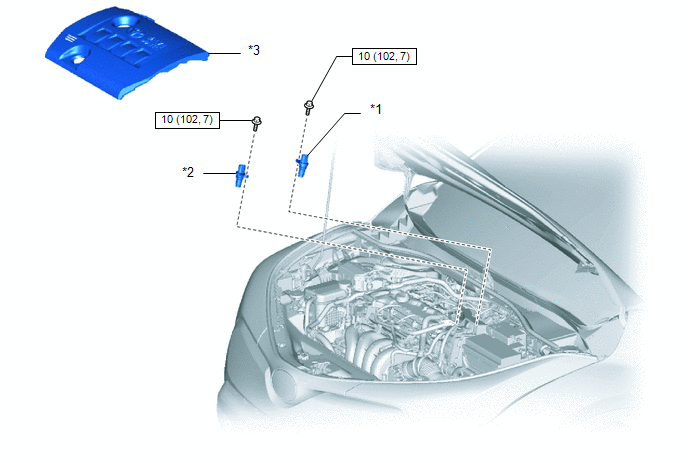

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY749142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR (for Exhaust Side) *2 CAMSHAFT POSITION SENSOR (for Intake Side)
*3 NO. 2 CYLINDER HEAD COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
