Removal [02/2017 - ]: Procedure

Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 12/2021] , or refer to REMOVAL [12/2021 - ]

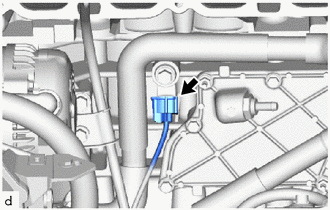

1. Disconnect the knock sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

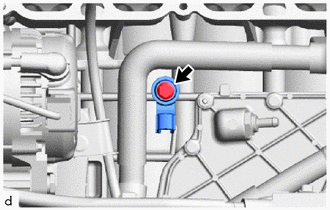

2. Remove the bolt and knock sensor from the cylinder block sub-assembly.
   NOTE:

   If the knock sensor has been struck or dropped, replace it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
