Components [01/2019 - ]

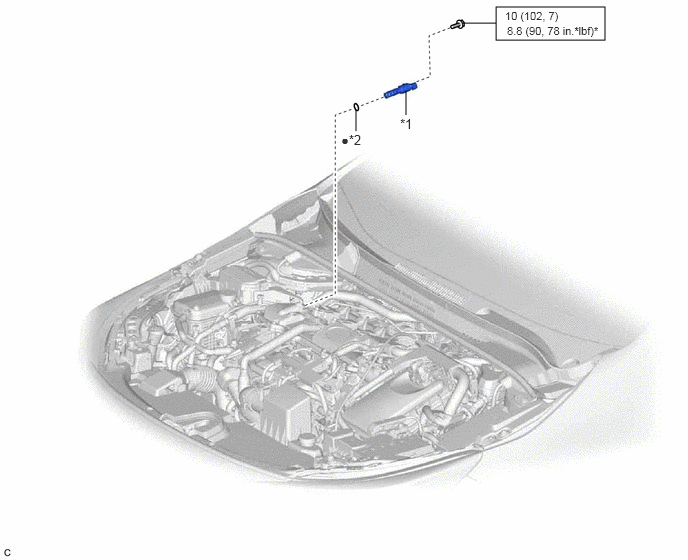

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY	*2	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-
