Components [09/2022 - ]

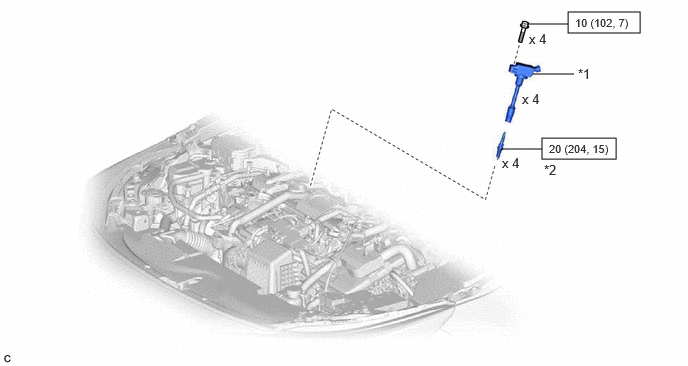

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [09/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
