Removal [01/2019 - 11/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  2. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - 11/2022]

  3. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 3 [09/2022 - 11/2022]

  4. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 5 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - 11/2022]

  5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

    Refer to PROCEDURE - Step 10 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - 11/2022]

  6. REMOVE COMBINATION SWITCH ASSEMBLY

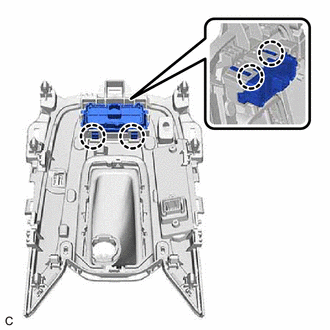

    1. Disengage the 4 claws and remove the combination switch assembly from the position indicator housing assembly.
      GTY845548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
