Components [09/2022 - ]

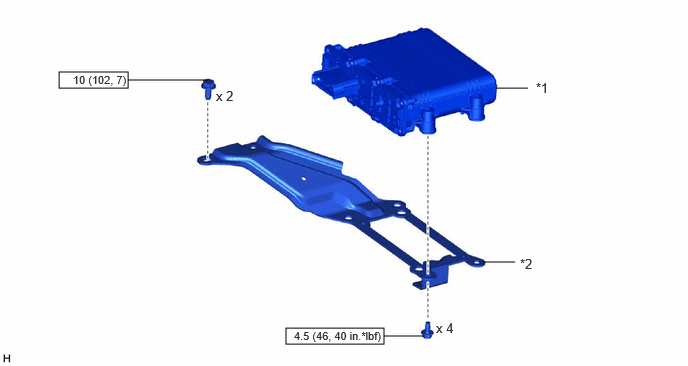

Fig 1: Brake Control Power Supply Replacement Components With Torque Specifications
GTY1117854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE CONTROL POWER SUPPLY ASSEMBLY *2 NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET
N.m (kgf/cm, ft.lbf): Specified torque - -
