Removal [09/2024 - ]: Procedure

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]
DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to REMOVAL [11/2022 - ]
REMOVE FRONT SEAT ASSEMBLY RH
for Manual Seat: Refer to REMOVAL [11/2022 - ]

for Power Seat: Refer to REMOVAL [11/2022 - ]

REMOVE BRAKE CONTROL POWER SUPPLY ASSEMBLY

WARNING:

After removing the brake control power supply assembly from the vehicle, there may be an electrical charge left in the internal capacitor. If planning to inspect the inside of the brake control power supply assembly, leave it as is for more than 24 hours (to discharge it) after removing it from the vehicle. Then, perform the inspection.

NOTE:

Do not hold the brake control power supply assembly by the connector.
Do not drop the brake control power supply assembly when carrying it.

Turn back the floor carpet.

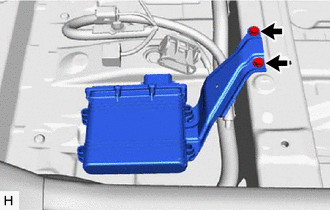

Remove the 2 bolts and remove the brake control power supply assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

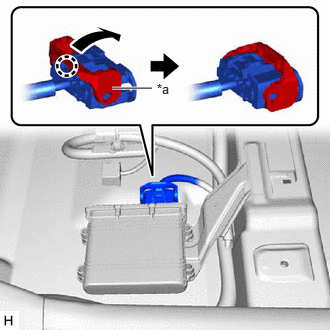

Disconnect the brake control power supply assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Lock Lever

Disengage the claw and raise the lock lever to disconnect the brake control power supply assembly connector as shown in the illustration.
NOTE:
After disconnecting the brake control power supply assembly connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the brake control power supply assembly connector.

REMOVE NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

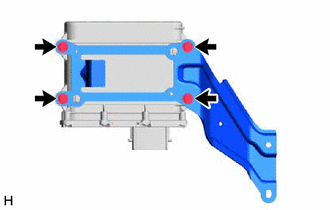

Remove the 4 bolts and No. 1 brake control power supply bracket.

NOTE:

Do not hold the brake control power supply assembly by the connector.
Do not drop the brake control power supply assembly when carrying it.
