Components [01/2019 - 11/2022]

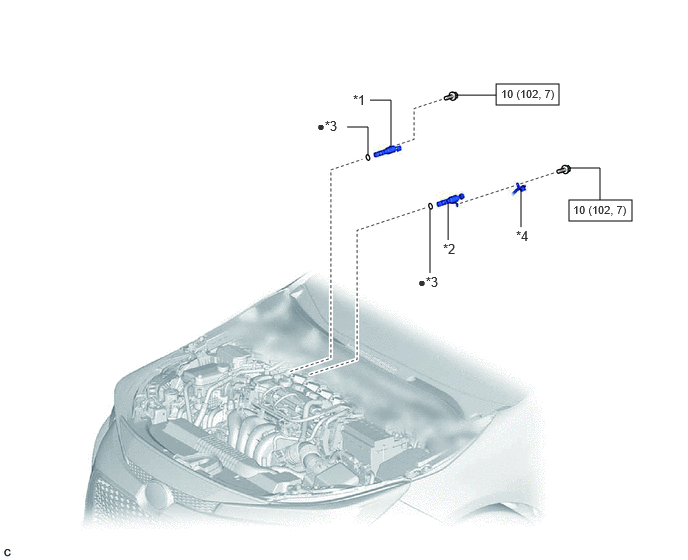

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)	*2	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
*3	O-RING	*4	WIRE HARNESS BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
