Components [12/2019 - 10/2022]

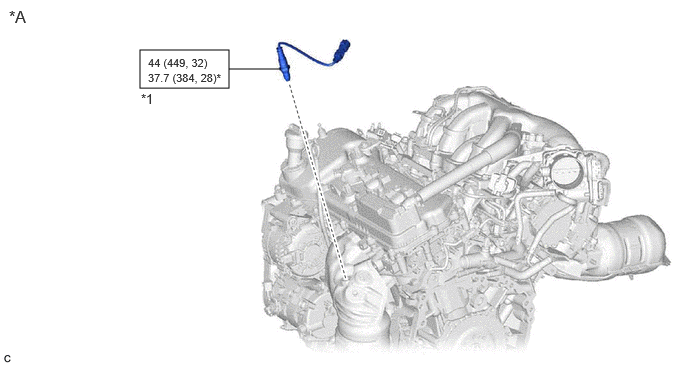

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Bank 2 | - | - |
| *1 | AIR FUEL RATIO SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |

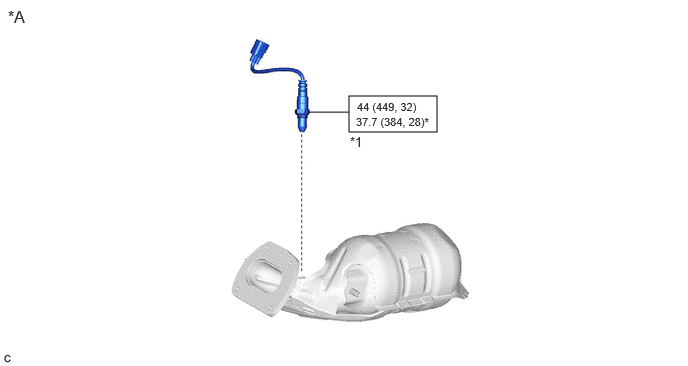

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Bank 1 | - | - |
| *1 | AIR FUEL RATIO SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
