Components [12/2019 - 10/2022]

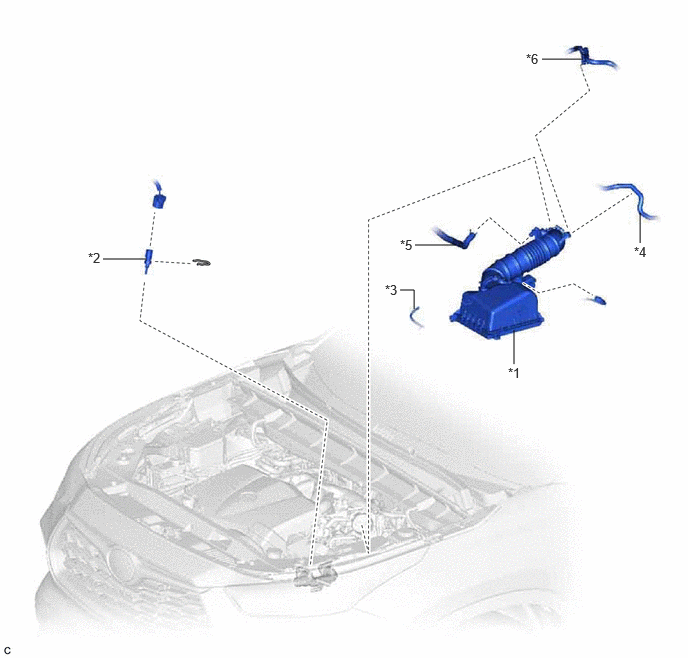

Fig 1: Engine Coolant Temperature Sensor Replacement Components [12/2019 - 10/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR CLEANER CAP WITH AIR CLEANER HOSE	*2	ENGINE COOLANT TEMPERATURE SENSOR
*3	VACUUM HOSE	*4	NO. 1 FUEL VAPOR FEED HOSE
*5	NO. 2 VENTILATION HOSE	*6	VACUUM HOSE BRACKET
