Components [12/2019 - 10/2022]

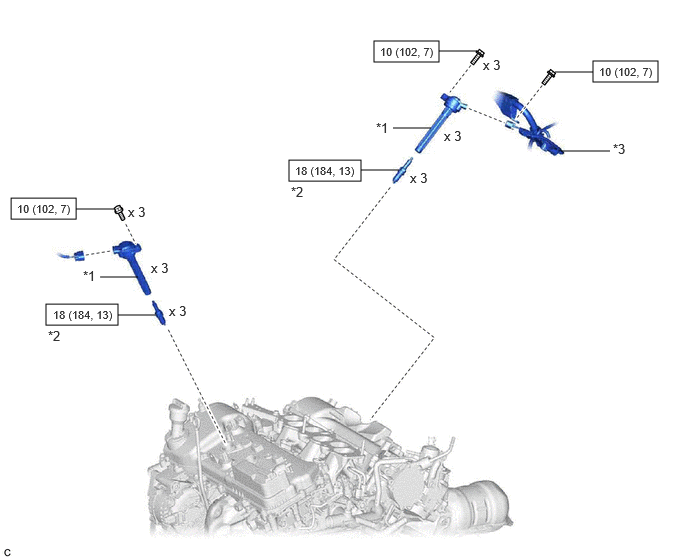

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications [12/2019 - 10/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	IGNITION COIL ASSEMBLY	*2	SPARK PLUG
*3	ENGINE WIRE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
