Reassembly [08/2015 - ]: Procedure

INSTALL NO. 1 FUEL SUCTION SUPPORT

Attach the 2 claws to the claw holes to install the fuel suction support.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL FUEL MAIN VALVE ASSEMBLY

Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel main valve.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the fuel main valve to the fuel filter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure the O-rings are not cut or pinched during the installation.

INSTALL FUEL PUMP

HINT:

Perform "Inspection After Repairs" after replacing the fuel pump (Refer to INITIALIZATION [08/2015 - ] ).

Connect the fuel pump wire harness connector to the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Apply a light coat of gasoline to a new O-ring. Then install the O-ring and spacer to the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Attach the 5 claws to the claw holes and install the fuel pump to the suction plate with filter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 1 FUEL SUB-TANK

NOTE:

Make sure that the fuel tube passes into the section marked by the circle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

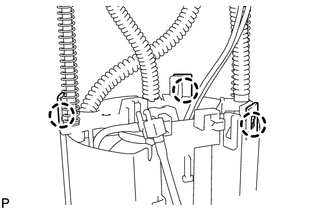

Attach the 3 claws to the claw holes to install the fuel sub-tank.

Attach the 3 claws to the claw holes.

Install the tube part to the sub-tank.

Attach the claw on the end of the tube to the claw hole. Install the tube to the 2 clamps on the sub-tank.

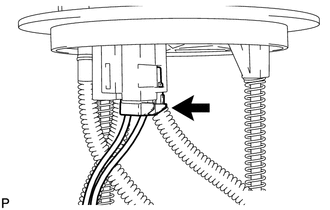

Connect the fuel pump connector.
