Removal [08/2015 - ]: Procedure

REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 18

REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR

Remove the 2 bolts and sensor protector.

GTY570843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

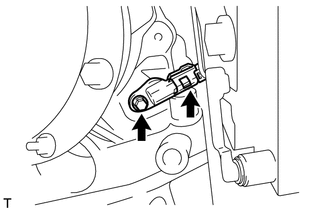

REMOVE CRANKSHAFT POSITION SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.
