Inspection [08/2015 - ]: Procedure
- INSPECT ENGINE COOLANT TEMPERATURE SENSOR

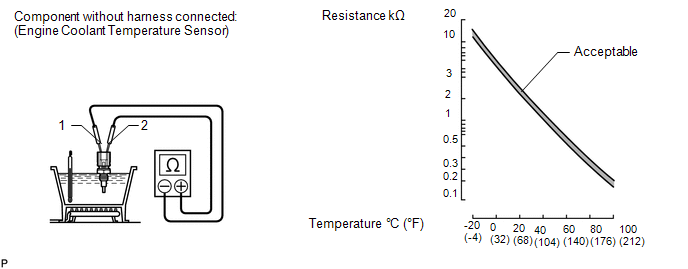

- Partially immerse the sensor in water and warm up the water.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 Approximately. 20°C (68°F) 2.32 to 2.59 kΩ 1 - 2 Approximately. 80°C (176°F) 0.310 to 0.326 kΩ NOTE:When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.
If the result is not as specified, replace the sensor.
