Installation [08/2015 - ]: Procedure

1. Install the 8 spark plugs.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   HINT:

   Perform "Inspection After Repairs" after replacing the spark plug (Refer to INITIALIZATION [08/2015 - ] ).

1. Install the 8 ignition coils with the 8 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

   HINT:

   Perform "Inspection After Repairs" after replacing the ignition coil assembly (Refer to INITIALIZATION [08/2015 - ] ).

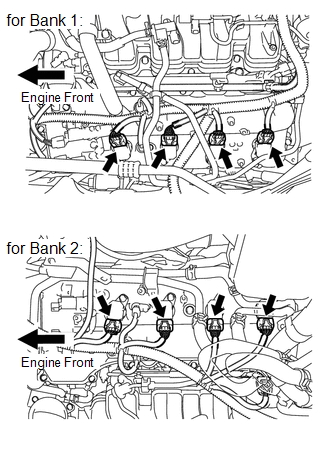

2. Connect the 8 ignition coil connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

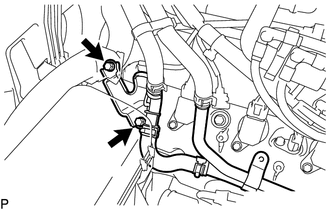

1. Connect the water by-pass pipe to the cylinder head cover with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

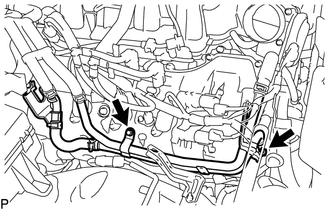

2. Connect the water by-pass pipe to the cylinder head cover and timing chain cover with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

Refer to PROCEDURE - Step 36

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 46

Refer to PROCEDURE - Step 48
