Home › Toyota › 2021 › Land Cruiser Base › Repair and Diagnosis › Engine Performance › Remove, Overhaul & Install › Engine Control System - Service Information › Mass Air Flow Meter › Installation [08/2015 - ] › Procedure

Installation [08/2015 - ]: Procedure

  1. INSTALL MASS AIR FLOW METER

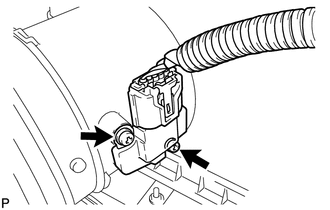

    1. Install the MAF meter with the 2 screws.
      GTY588674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 1.0 N*m (10 kgf*cm, 9 in.*lbf)

      HINT:

      Perform "Inspection After Repairs" after replacing the mass air flow meter (Refer to INITIALIZATION [08/2015 - ] ).

    2. Connect the MAF connector.
