Components [08/2015 - ]

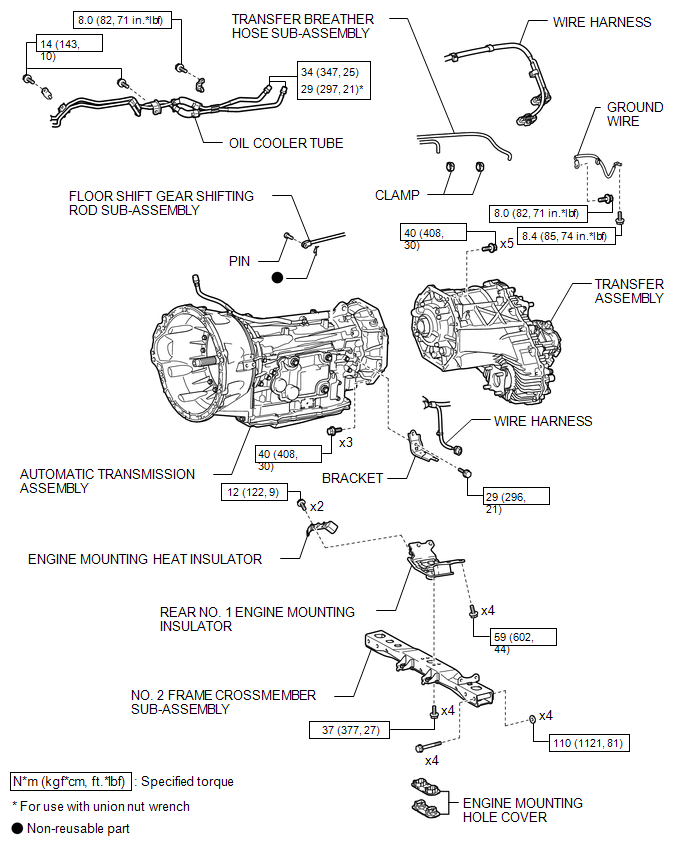

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

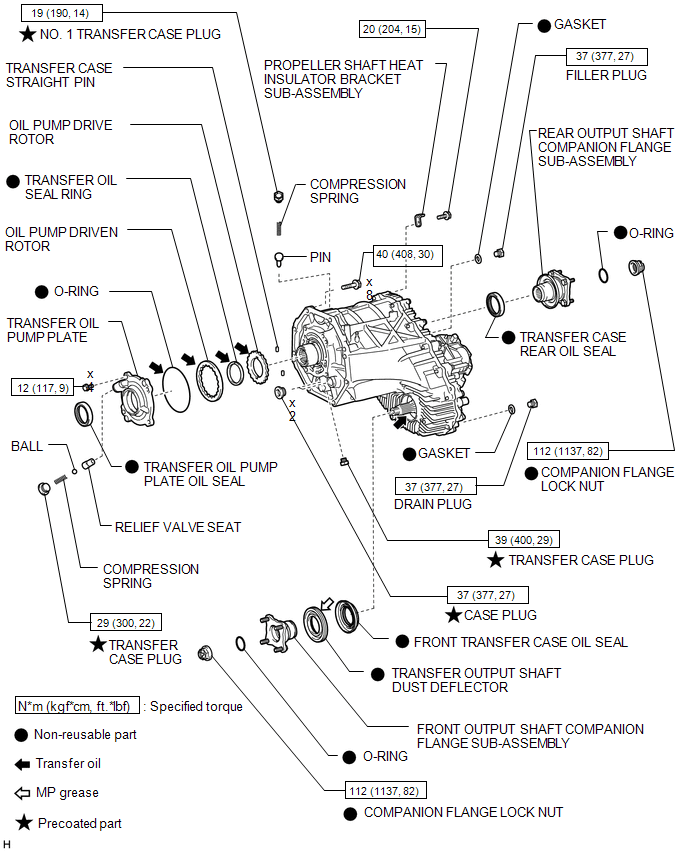

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Transfer Assembly Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Transfer Assembly Replacement Components With Torque Specifications (6 Of 6)
