Removal [11/2020 - ]: Procedure
- REMOVE REAR WHEEL
Refer to REMOVAL [11/2020 - 12/2023] , or refer to REMOVAL [12/2023 - ]

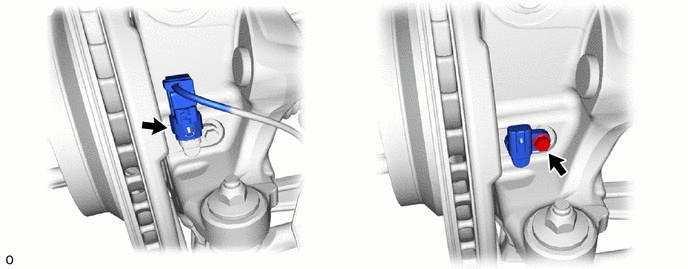

- REMOVE REAR SPEED SENSOR LH NOTE:
- Remove any dirt or foreign matter on and around the connector before performing this step.
- Do not allow water, oil or dirt to enter the connector.
- Be careful not to damage the rear speed sensor or connector.
- The rear speed sensor is easily damaged. When pulling out the rear speed sensor from the rear axle hub LH, do not use excessive force to rotate and remove it.
- Prevent foreign matter from attaching to the sensor tip.
- Do not drop the sensor. If the sensor has been dropped, replace the sensor with a new one.
