Components [11/2015 - ]

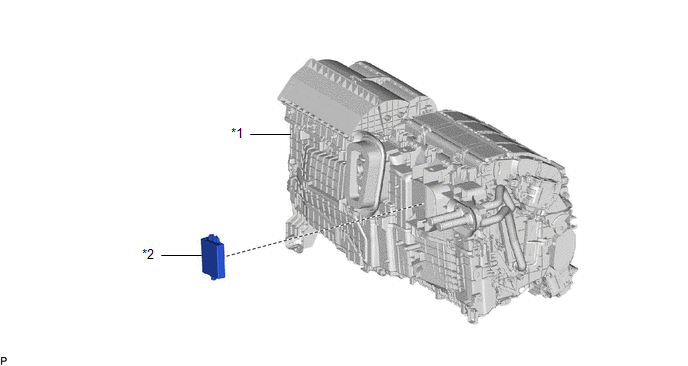

Fig 1: ID Code Box Replacement Components

GTY567754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

AIR CONDITIONER UNIT ASSEMBLY

*2

ID CODE BOX (IMMOBILISER CODE ECU)
