Driver Side Power Window does not Operate with Power Window Master Switch [11/2015 - ]: Wiring Diagram

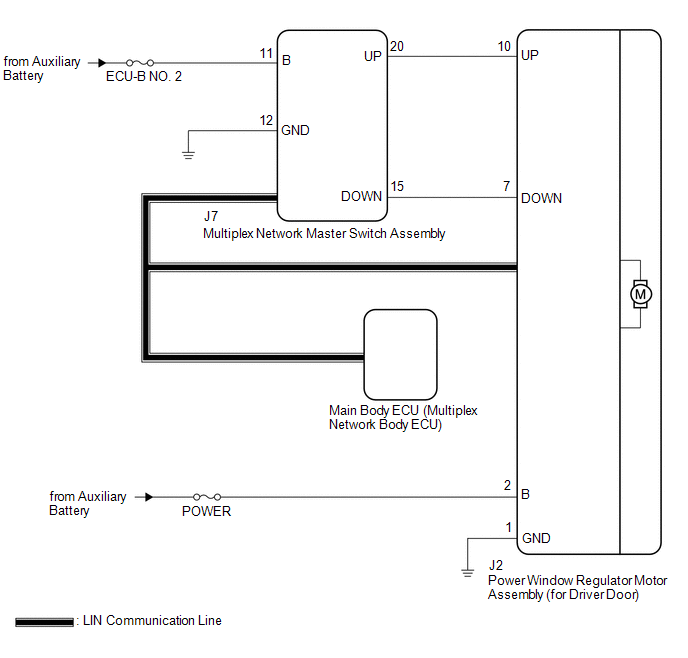

Fig 1: Driver Side Power Window With Power Window Master Switch Circuit Diagram
GTY565054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
