Components [11/2015 - ]

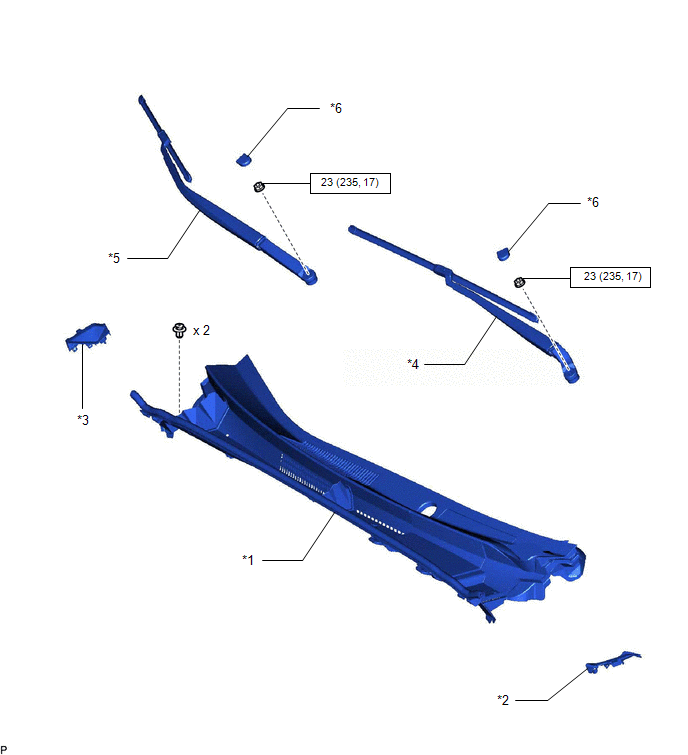

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	COWL WATER EXTRACT SHIELD LH
*3	COWL WATER EXTRACT SHIELD RH	*4	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*5	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*6	FRONT WIPER ARM HEAD CAP
	N.m (kgf.cm, ft./lbf): Specified torque	-	-

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3	FRONT PILLAR GARNISH LH	*4	FRONT PILLAR GARNISH RH

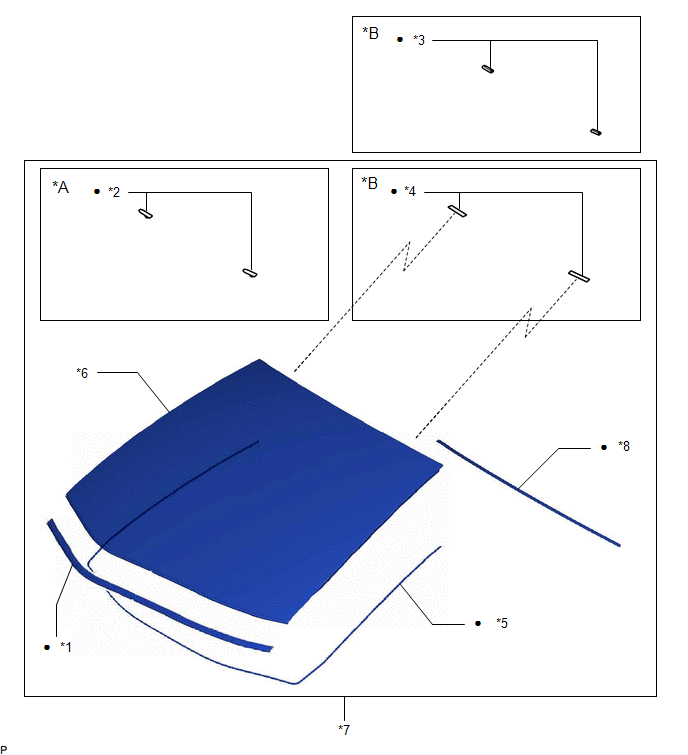

Fig 3: Windshield Glass Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

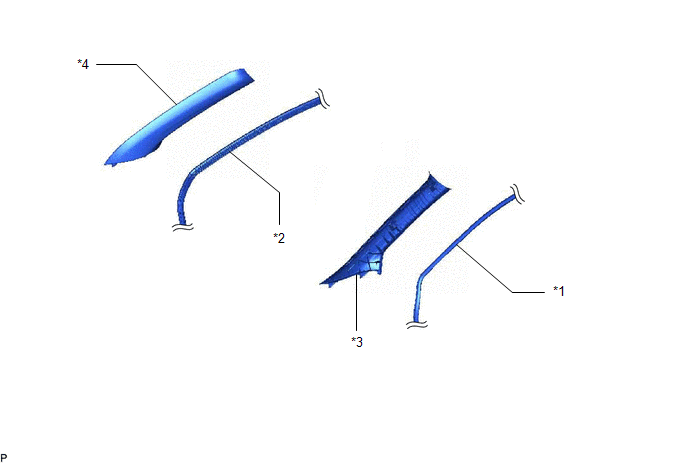

Fig 4: Windshield Glass Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	ROOF HEADLINING ASSEMBLY	-	-

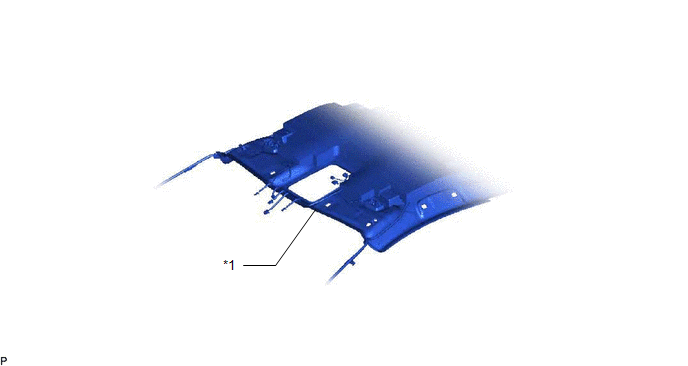

Fig 5: Windshield Glass Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*A	for 1-piece Type	*B	for 2-piece Type
*1	FRONT WINDOW INNER CENTER MOULDING	*2	NO. 1 WINDSHIELD GLASS STOPPER
*3	NO. 1 WINDSHIELD GLASS STOPPER	*4	NO. 2 WINDSHIELD GLASS STOPPER
*5	WINDOW GLASS ADHESIVE DAM	*6	WINDSHIELD GLASS
*7	WINDSHIELD GLASS SUB-ASSEMBLY	*8	WINDSHIELD OUTSIDE MOULDING
•	Non-reusable part	-	-
