Components [11/2015 - ]

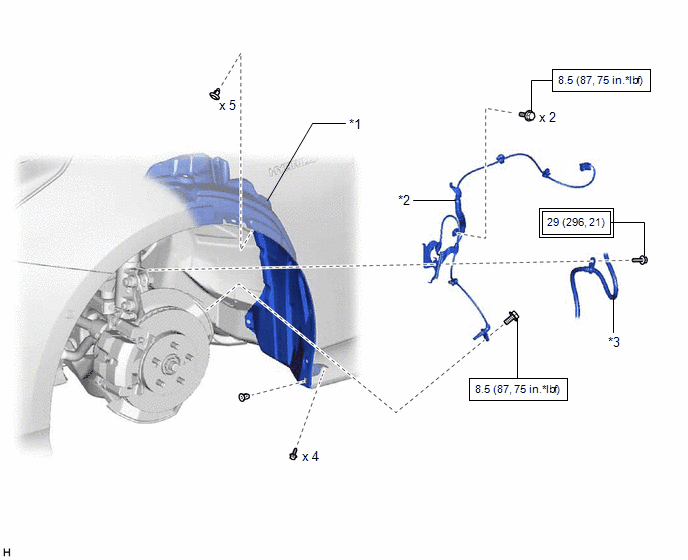

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	FRONT FENDER LINER	*2	FRONT SPEED SENSOR
*3	FRONT FLEXIBLE HOSE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf)		N.m (kgf.cm, ft./lbf): Specified torque
