Integration Relay
›
Components [11/2015 - ]
Components [11/2015 - ]

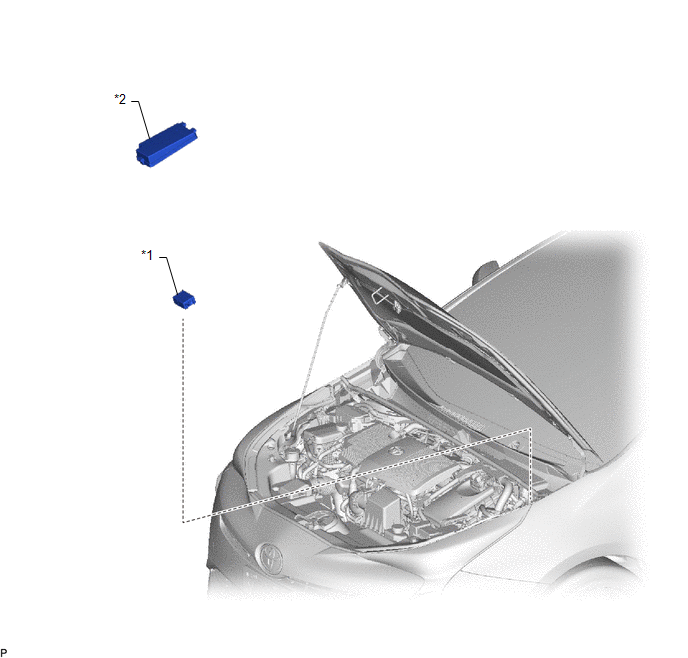

Fig 1: Integration Relay Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 INTEGRATION RELAY
*2
NO. 1 RELAY BLOCK COVER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
