Components [11/2015 - 12/2018]

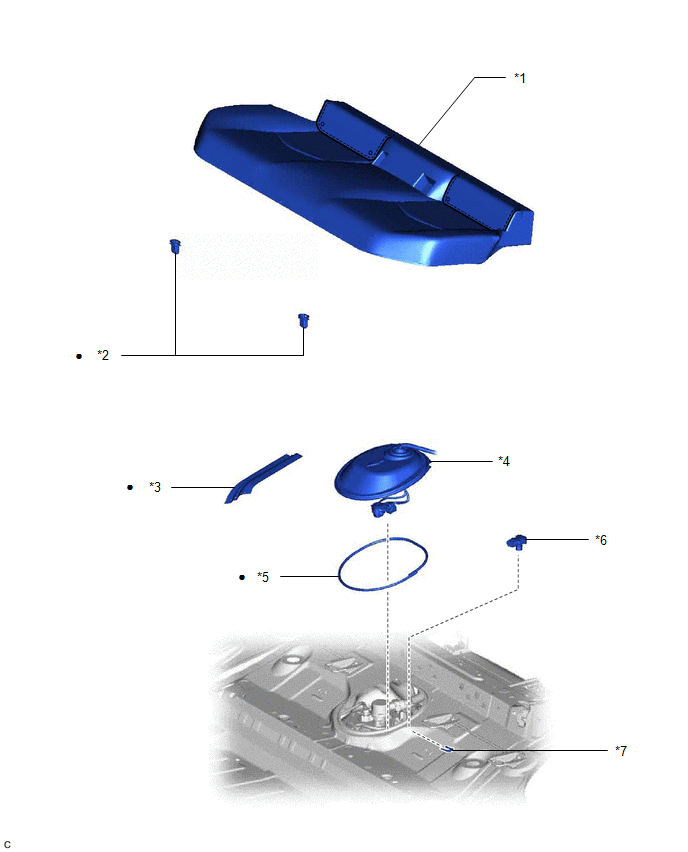

Fig 1: Fuel Tank Pressure Sensor Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR SEAT CUSHION ASSEMBLY	*2	REAR SEAT CUSHION LOCK HOOK
*3	NO. 3 WIRING HARNESS PROTECTOR	*4	REAR FLOOR SERVICE HOLE COVER
*5	BUTYL TAPE	*6	FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)
*7	TUBE JOINT CLIP	-	-
•	Non-reusable part	-	-
