Components [11/2015 - ]

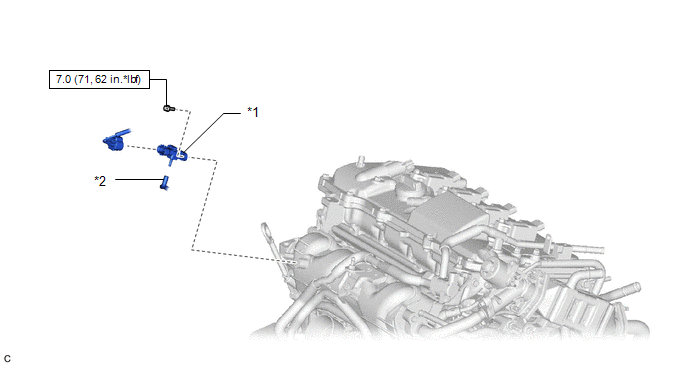

Fig 1: Vacuum Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)	*2	VACUUM HOSE
	N.m (kgf.cm, ft./lbf): Specified torque	-	-
