Removal [11/2015 -]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6 [11/2015 - 08/2016] , or refer to PROCEDURE - Step 6 [08/2016 - 12/2018] , or refer to PROCEDURE - Step 6 [12/2018 - 07/2020] , or refer to PROCEDURE - Step 6 [07/2020 -]

  2. DRAIN ENGINE OIL

    See step  2 [11/2015 - 12/2018], or See step  2 [12/2018 - 07/2020], or See step  2 [07/2020 - 06/2021], or See step  2

  3. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 47

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

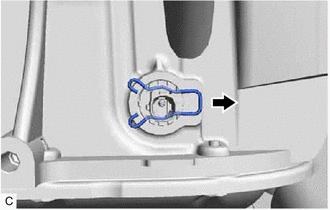

    2. Remove the clip from the engine oil level sensor.
      GTY590873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

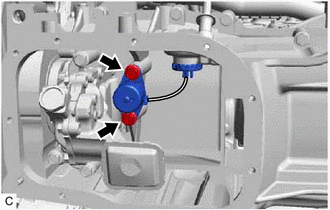

    3. Remove the 2 bolts and engine oil level sensor.
      GTY609216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
