Installation [11/2015 -]: Procedure

  1. INSTALL STUD BOLT (w/ Stud Bolt)

    HINT:

    If a stud bolt is deformed or the threads are damaged, replace it.

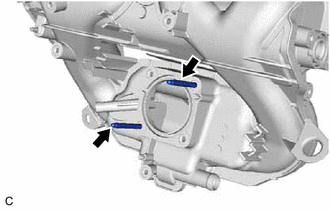

    1. Using an E6 "TORX" socket wrench, install the 2 stud bolts to the intake manifold.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

      GTY598724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. Install a new No. 1 intake manifold to head gasket to the intake manifold.
  3. INSTALL INTAKE MANIFOLD
    1. Temporarily install the intake manifold to the cylinder head sub-assembly with the 3 bolts and 2 nuts.
    2. Tighten the 3 bolts and 2 nuts in several steps.

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

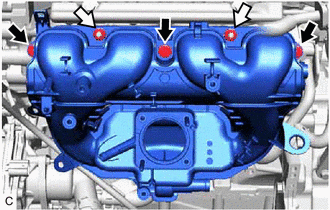

      Fig 1: Intake Manifold Tightening Sequence
      GTY571744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  4. CONNECT WATER BY-PASS HOSE

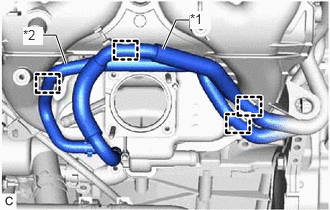

    1. Engage the 2 hose clamps to connect the No. 2 water by-pass hose to the intake manifold.
      GTY563334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Water By-Pass Hose
      *2 No. 2 Water By-pass Hose
    2. Engage the 2 hose clamps to connect the water by-pass hose to the intake manifold.
  5. CONNECT NO. 2 FUEL VAPOR FEED HOSE
    1. Engage the 2 hose clamps to connect the No. 2 fuel vapor feed hose to the intake manifold.
    2. Connect the No. 2 fuel vapor feed hose to the intake manifold.
  6. CONNECT NO. 8 WATER BY-PASS HOSE
    1. Connect the No. 8 water by-pass hose to the No. 3 water by-pass pipe and slide the clip to secure it.
    2. Engage the 2 hose clamps.
  7. CONNECT ENGINE COVER BRACKET
    1. Connect the engine cover bracket to the intake manifold with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  8. CONNECT ENGINE WIRE

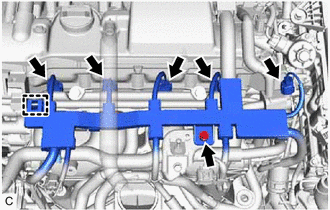

    1. Engage the clamp and connect the engine wire with the bolt.
      GTY544034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Connect the 4 fuel injector assembly connectors and purge valve (purge VSV) connectors.

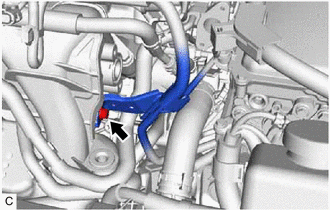

    3. Connect the wire harness bracket with the bolt.
      GTY544042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

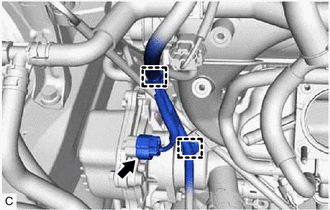

    4. Connect the engine water pump assembly connector.
      GTY598722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 clamps.
  9. CONNECT VENTILATION HOSE
    1. Connect the ventilation hose to the intake manifold and slide the clip to secure it.
  10. INSTALL E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
    1. Install the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) to the intake manifold with the bolt.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    2. Connect the vacuum hose to the intake manifold.
    3. Connect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
  11. INSTALL EGR PIPE ASSEMBLY

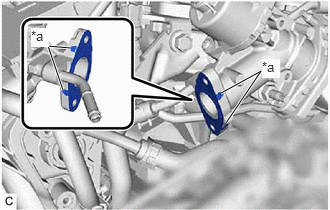

    1. Install a new EGR pipe gasket to the EGR valve assembly.
      NOTE:

      Make sure that the claws of the EGR valve gasket are toward the EGR valve assembly side.

      GTY592322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw

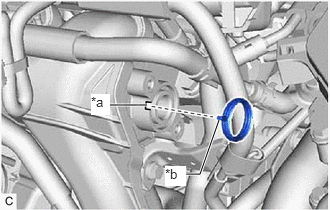

    2. Install a new inlet EGR gasket to the intake manifold.

      HINT:

      Align the protrusion of the inlet EGR gasket with the groove of the intake manifold.

      GTY585626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Groove
      *b Protrusion
    3. Install the EGR pipe assembly to the intake manifold and EGR valve assembly with the 4 bolts.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  12. INSTALL INLET NO. 1 AIR CLEANER
    1. Install the inlet No. 1 air cleaner to the intake manifold with the 2 bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  13. INSTALL AIR CLEANER BRACKET

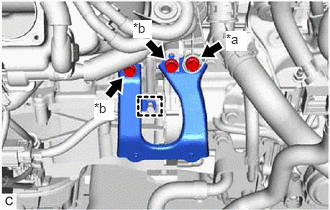

    1. Engage the wire harness clamp and install the air cleaner bracket to the cylinder block sub-assembly and air conditioning wire with the bolt (A) and 2 bolts (B).
      GTY606433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt (A)
      *b Bolt (B)

      Bolt (A)

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

      Bolt (B)

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

  14. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
    1. Install the air cleaner case sub-assembly to the air cleaner bracket with the 2 bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

  15. INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
    1. Install the air cleaner filter element sub-assembly to the air cleaner case sub-assembly.
  16. INSTALL INLET NO. 2 AIR CLEANER

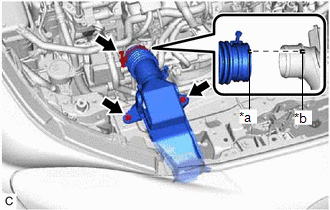

    1. Temporarily install the inlet No. 2 air cleaner to the inlet No. 1 air cleaner and upper radiator support sub-assembly with the 2 bolts.
      GTY595608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Groove
      *b Protrusion

      HINT:

      Align the protrusion of the inlet No. 1 air cleaner with the groove of the inlet No. 2 air cleaner.

    2. Tighten the 2 bolts.

      Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

    3. Tighten the hose clamp.

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  17. INSTALL RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 2 [11/2015 - 12/2018] , or refer to PROCEDURE - Step 2 [12/2018 -]

  18. INSTALL THROTTLE BODY ASSEMBLY

    Refer to INSTALLATION [11/2015 -]
