Components [11/2015 - ]

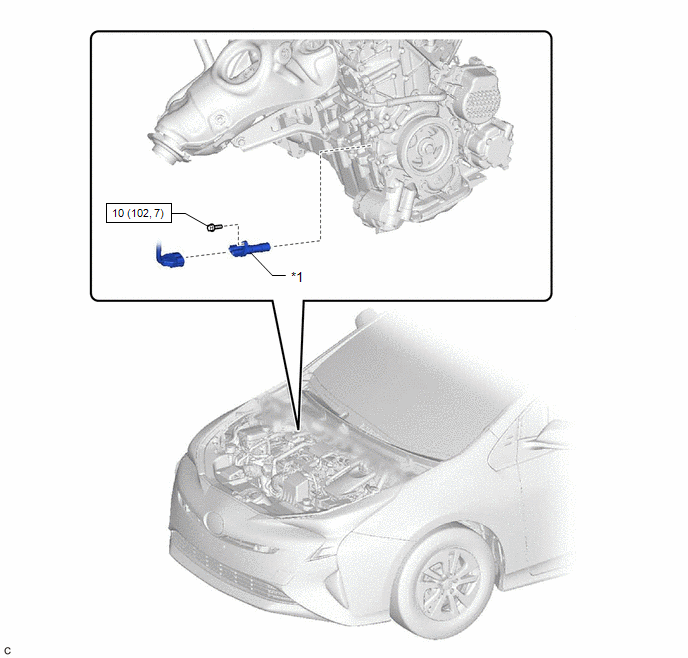

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CRANKSHAFT POSITION SENSOR	-	-
	N.m (kgf.cm, ft./lbf): Specified torque	-	-
