Components [11/2015 - ]

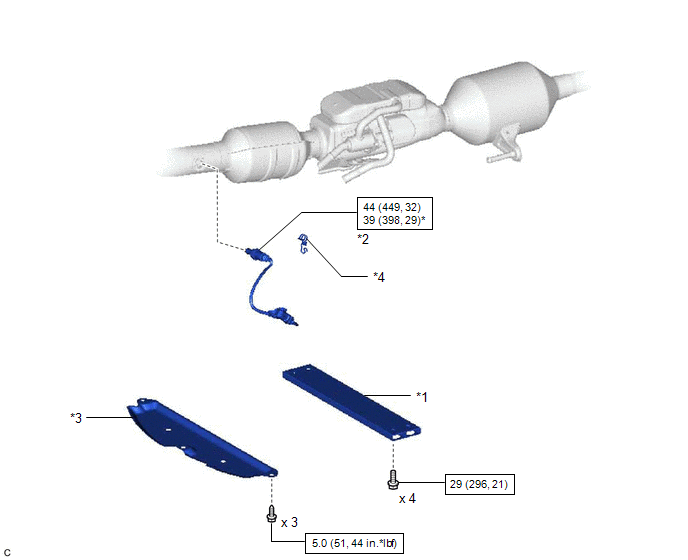

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	FRONT CENTER FLOOR BRACE	*2	HEATED OXYGEN SENSOR
*3	NO. 2 ENGINE UNDER COVER	*4	WIRE HARNESS CLAMP BRACKET
	N.m (kgf.cm, ft./lbf): Specified torque	*	For use with SST
