Removal [08/2020 -]: Procedure

WARNING: This page is about a different car, the 2021 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [08/2020 - 08/2021] , or refer to REMOVAL [08/2021 -]
REMOVE NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 35 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 34 [08/2021 -]

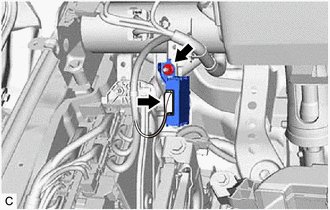

REMOVE 4WD ECU ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 4WD ECU assembly connector.
2. Remove the nut and 4WD ECU assembly from the instrument panel reinforcement assembly.
