Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

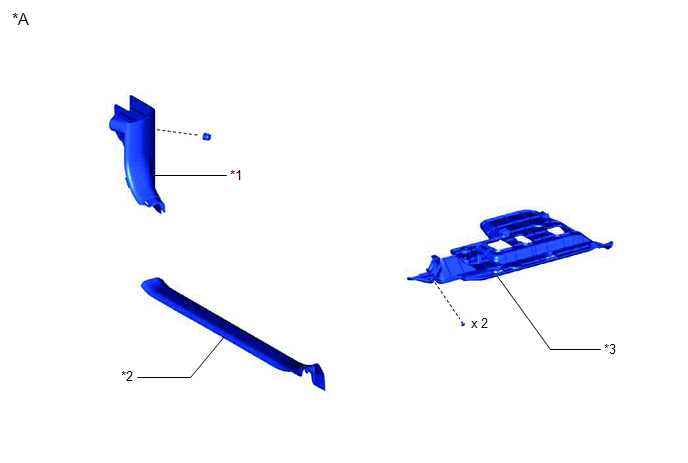

| *A |
for LH Side |
- |
- |
| *1 |
COWL SIDE TRIM SUB-ASSEMBLY LH |
*2 |
FRONT DOOR SCUFF PLATE LH |
| *3 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

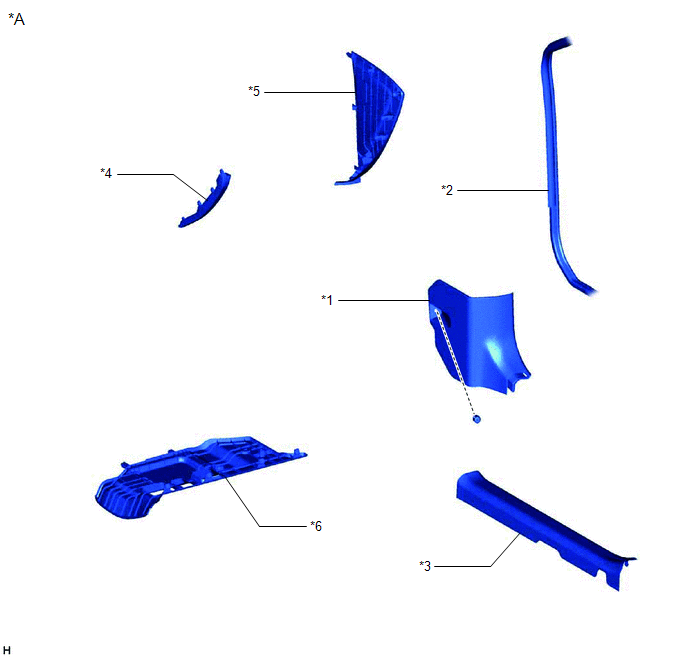

| *A |
for RH Side |
- |
- |
| *1 |
COWL SIDE TRIM SUB-ASSEMBLY RH |
*2 |
FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 |
FRONT DOOR SCUFF PLATE RH |
*4 |
GLOVE COMPARTMENT PLATE |
| *5 |
INSTRUMENT SIDE PANEL RH |
*6 |
NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

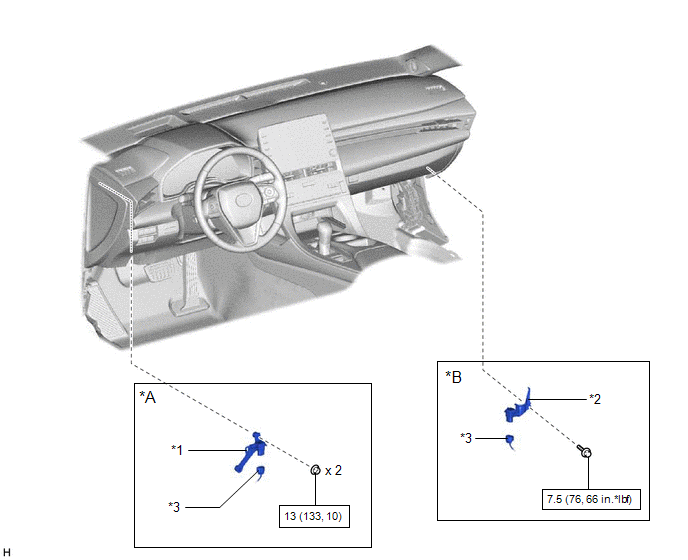

| *A |
for LH Side |
*B |
for RH Side |
| *1 |
ACCELERATION SENSOR ASSEMBLY LH |
*2 |
ACCELERATION SENSOR ASSEMBLY RH |
| *3 |
CONNECTOR |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
