Parts Location [07/2020 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

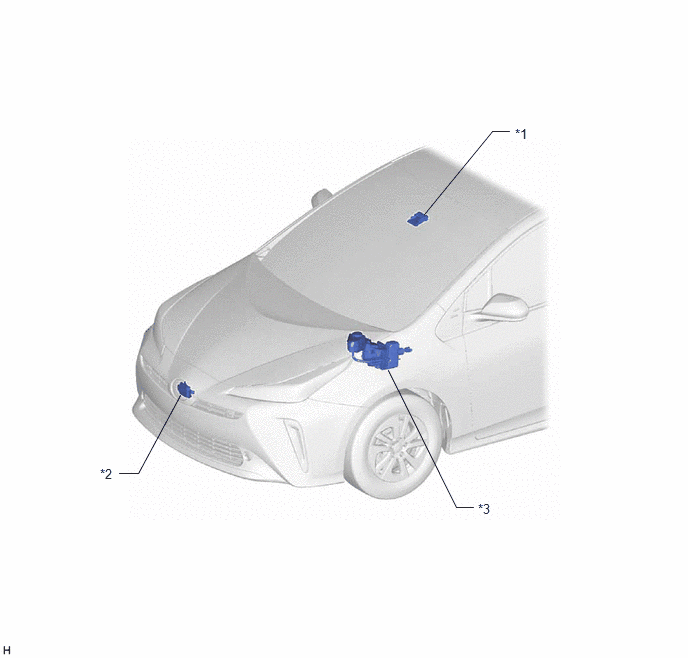

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

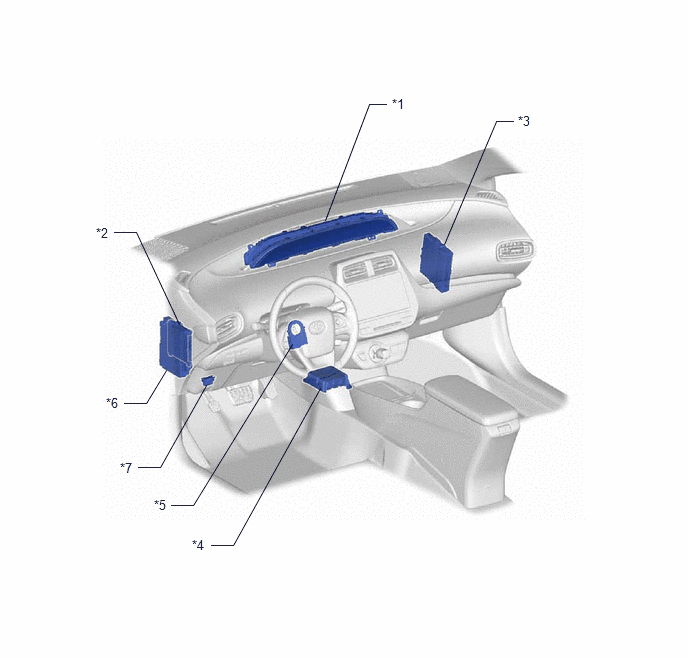

*1	METER CIRCUIT PLATE (COMBINATION METER ASSEMBLY)	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	HYBRID VEHICLE CONTROL ECU	*4	AIRBAG ECU ASSEMBLY
*5	STEERING SENSOR	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE
*7	DLC3	-	-
