Parts Location [11/2015 - 12/2018]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

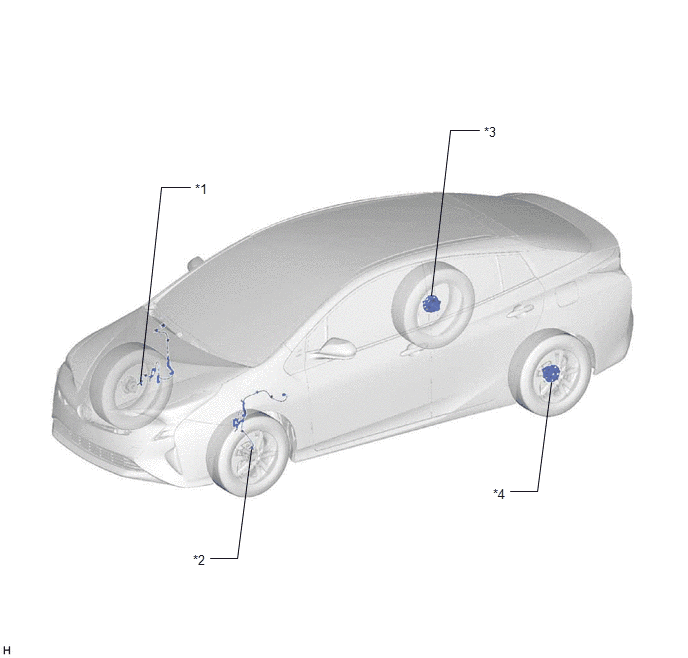

*1	FRONT SPEED SENSOR RH	*2	FRONT SPEED SENSOR LH
*3	REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR RH	*4	REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

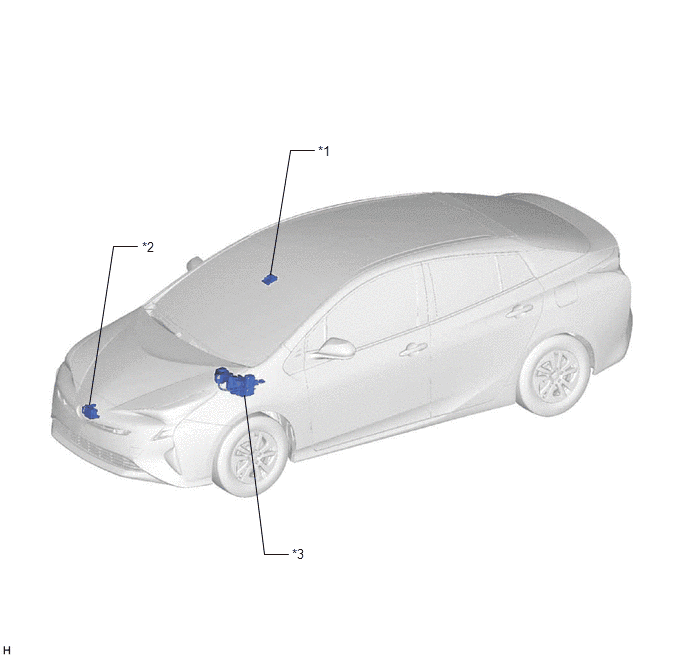

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

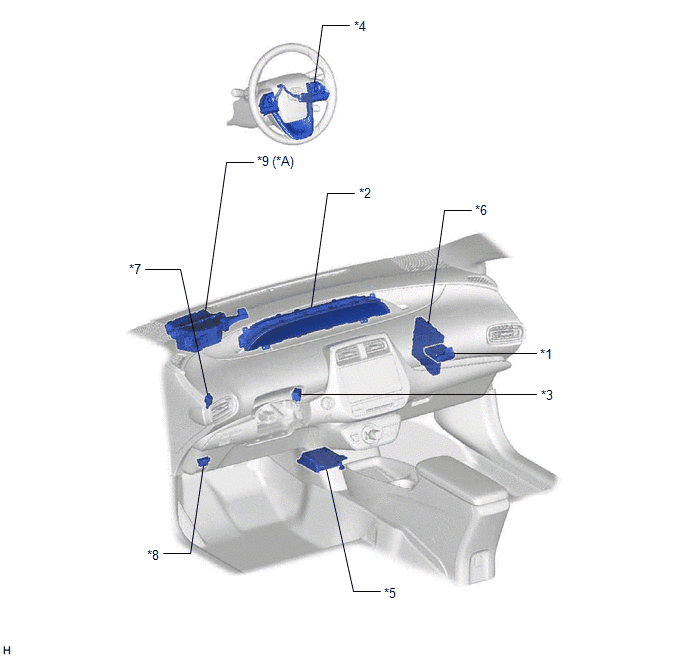

*A	w/ Headup Display System	-	-
*1	DRIVING SUPPORT ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - PCS WARNING LIGHT
*3	SKID CONTROL BUZZER	*4	STEERING PAD SWITCH ASSEMBLY
*5	AIRBAG ECU ASSEMBLY - YAW RATE SENSOR	*6	HYBRID VEHICLE CONTROL ECU
*7	STOP LIGHT SWITCH ASSEMBLY	*8	DLC3
*9	HEADUP DISPLAY (COMBINATION METER MIRROR ECU)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

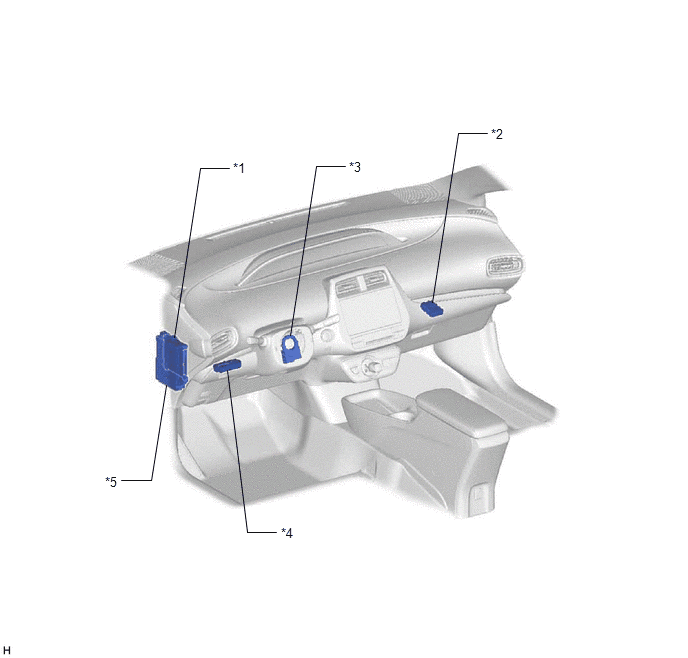

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)
*3	STEERING SENSOR	*4	COMBINATION SWITCH ASSEMBLY - VSC OFF SWITCH
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG2 NO. 3 FUSE - STOP FUSE	-	-
