Removal [11/2015 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR

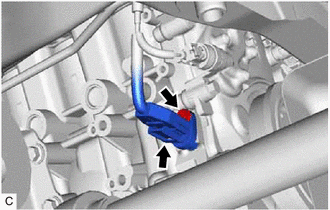

    1. Disconnect the crankshaft position sensor connector.
      GTY600060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
