Power Distribution - Service Information
›
Fuse Box Id
›
Front Fender Apron LH
›

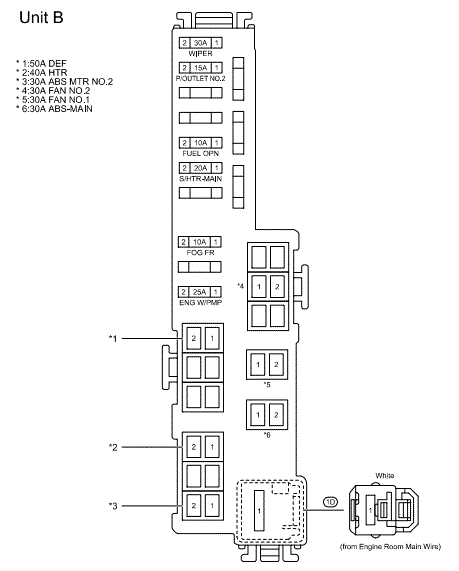

Unit B
Unit B
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
