Components [11/2015 - 12/2018]

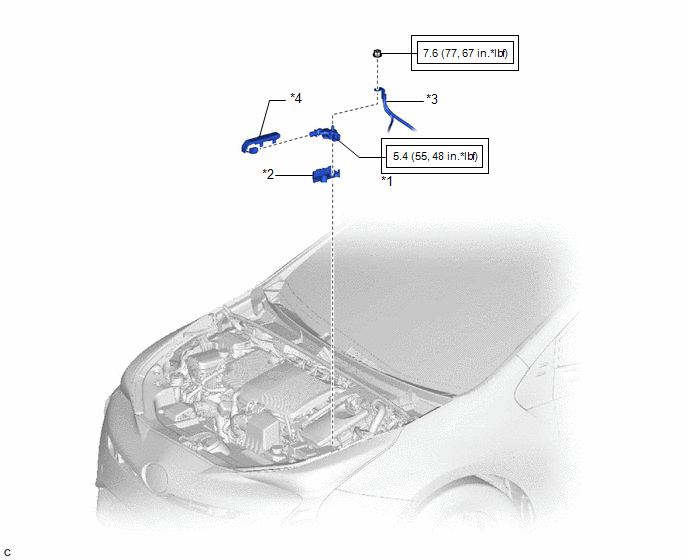

Fig 1: Battery Current Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY STATE SENSOR ASSEMBLY	*2	BATTERY CURRENT SENSOR HOLDER
*3	ENGINE WIRE	*4	WIRE HARNESS
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf./cm, ft./bf)	-	-
